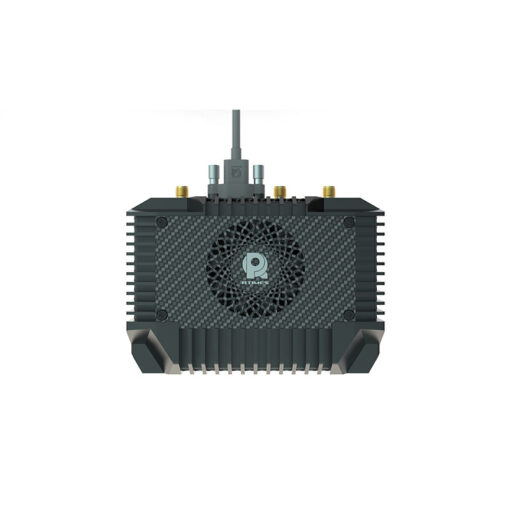

Jetson Orin NX/Orin Nano Feiyun Smart Box

  • Compatible with NVIDIA Jetson Orin NX/Orin Nano modules

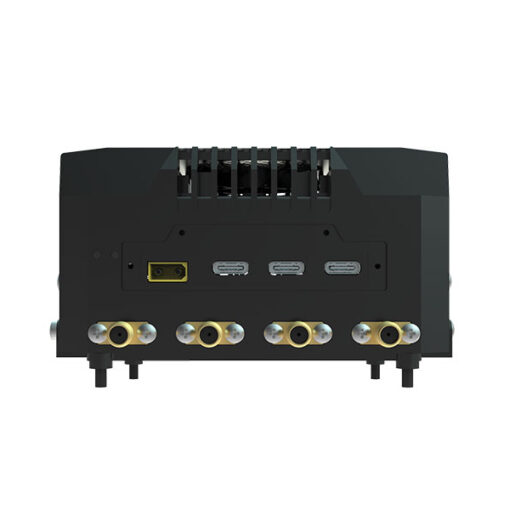

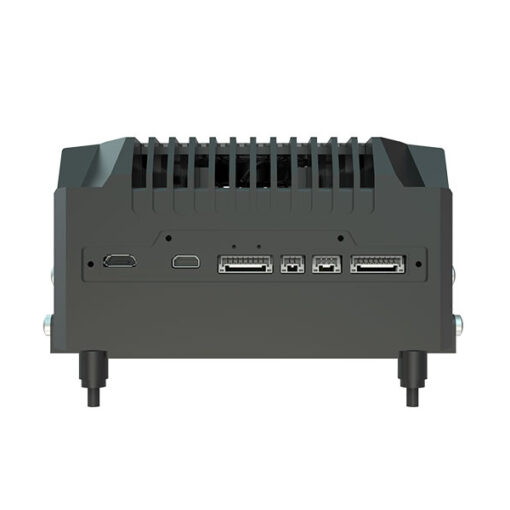

  • Dual USB3.0 ports, dual USB2.0 ports, independent Gigabit Ethernet, Micro HDMI display ports, rich basic ports
  • Built-in M2 key M port supports large-capacity, high-speed SSD storage
  • Support expansion of M2 key B interface, support 5G communication module access to achieve high-speed wireless network
  • Small in size and light in weight, it is the ideal solution for the drone industry


 RTSS-X306 Datasheet

 Product Manual for X306-V1.0





The RTSS-X306 is the UAV industry solution for NVIDIA@ Jetson Orin NX_ and NVIDIA Jetson Orin Nano core modules. It uses an aluminum alloy shell with an active cooling design which can adapt to the harsher working environment. The use of a stable snap terminal block to ensure the stability of the interface during the flight of the UAV, rich interfaces to ensure the diversity of sensor access, OSDK interface can meet the needs of customers to access industry-level UAVs, built-in chip type WIFI6 module to ensure more stable data exchange longer distance signal transmission, The ideal solution for the drone industry.

The NVIDIA Jetson Orin NX/Orin Nano module is a series of embedded Al processors from NVIDIA, featuring high performance and low power consumption, and the module size is only the size of a credit card. It mainly targets edge computing artificial intelligence robot technology and visual Al application scenarios, such as drones, autonomous guided vehicles (AGVs) autonomous mobile robots (AMRs), etc., which has broad application prospects.

The RTSS-X306 carrier board is equipped with the NVIDIA Jetson Orin NX/Orin Nano module and is driven by RTS Linux4Tegra software support package to form a system solution that can be powered up and run and can be directly applied to field deployment.
