Description

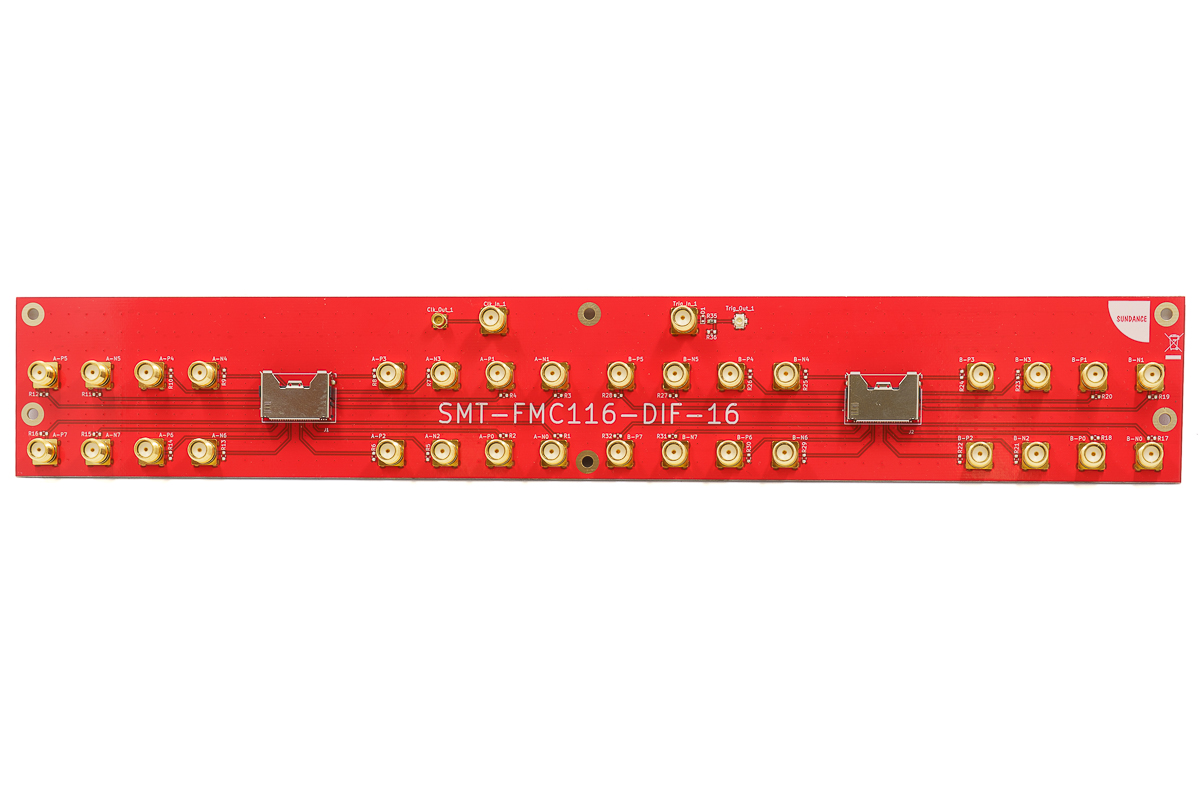

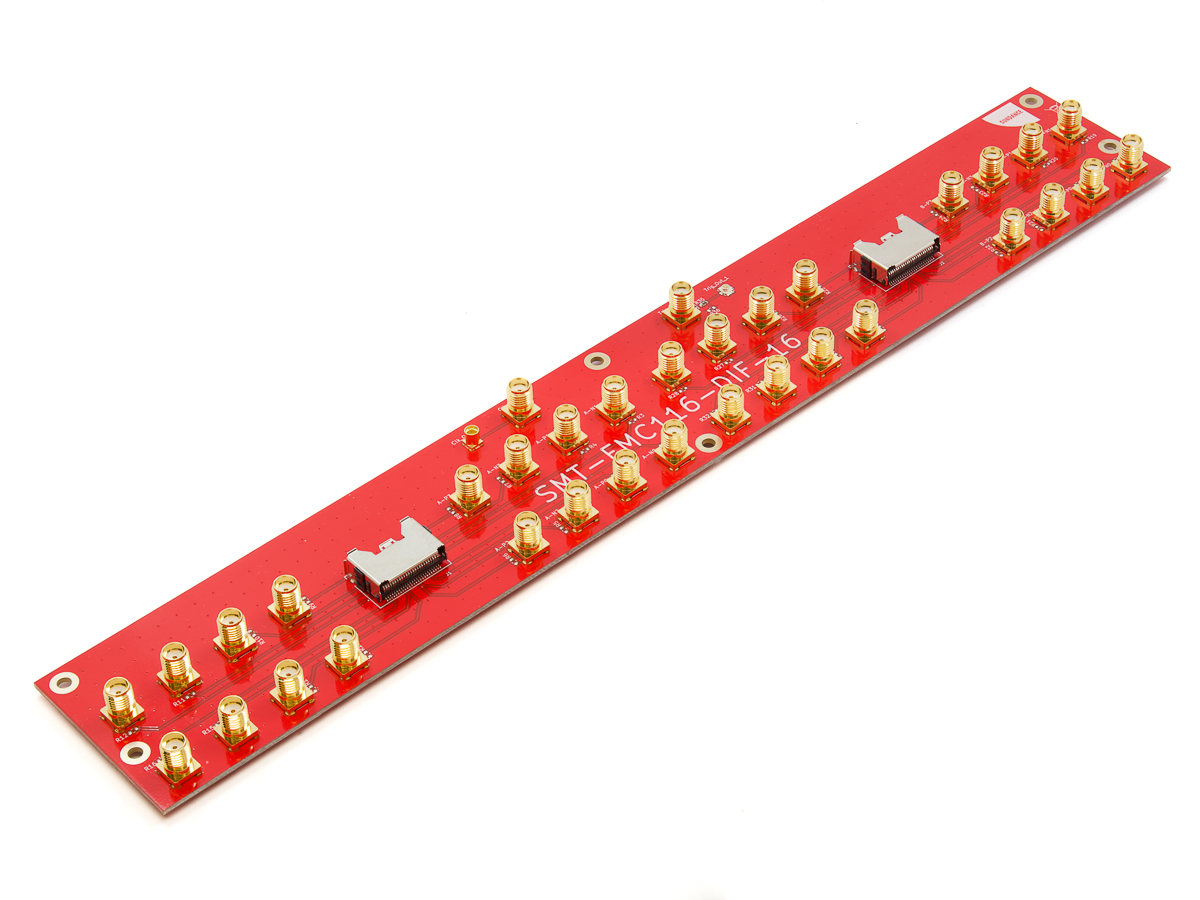

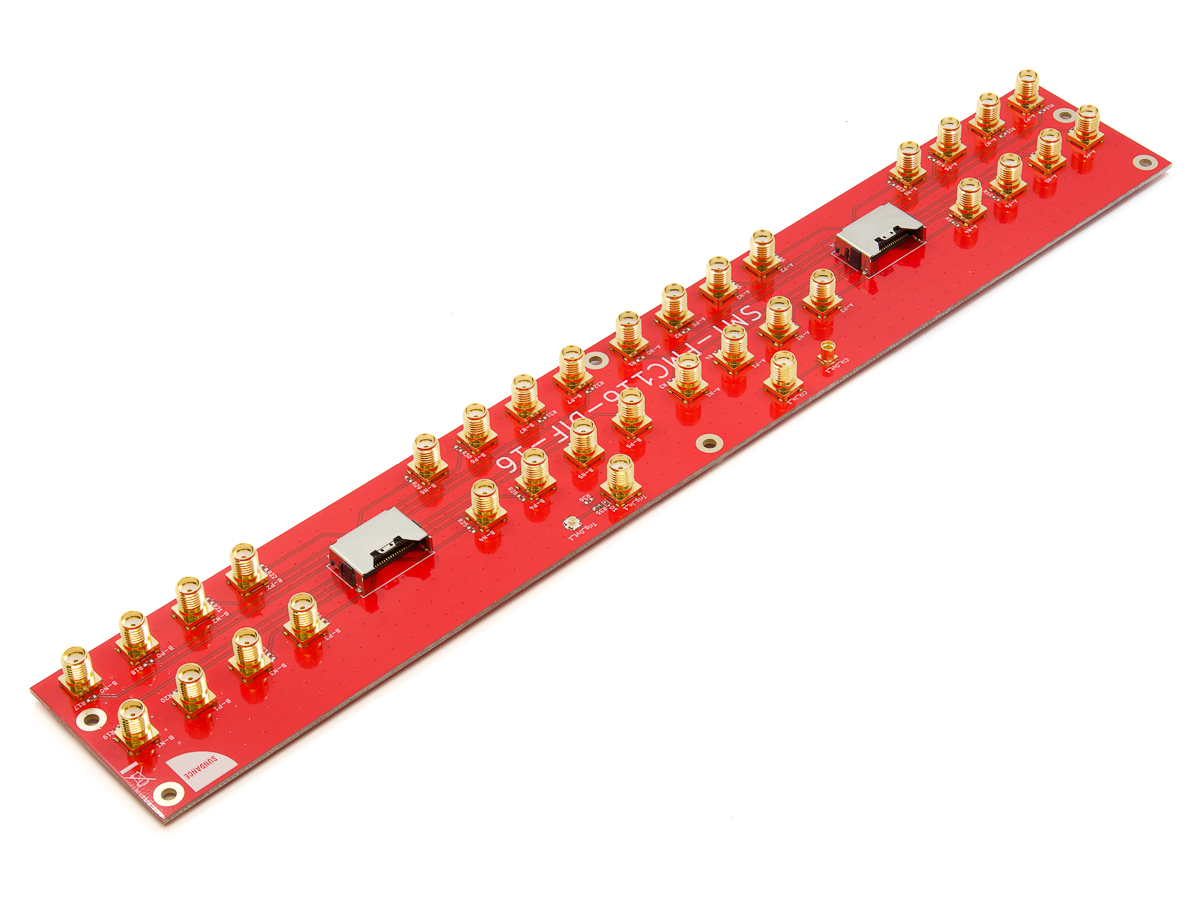

The SMT-FMC116-SMA-16-DIF has a pair of Samtec SAMTEC_ARF6-16-S-RA connectors for linking the SMA connectors on board to the SMT-FMC116.
Each of the 16 channels has a P and N SMA connector for full flexibility. There is also an SMA connector for the external clock that is linked to a MMCX connector for easy conversion, and another for the External trigger that is linked to a U.FL socket.
The External trigger has the possibility of using a voltage divider and an ESD diode to reduce the amplitude of the signal supplied to the SMT-FMC116.
