Description
An Efinix Titanium Ti135 Evaluation Board for edge computing, real-time control, and vision-centric workloads.

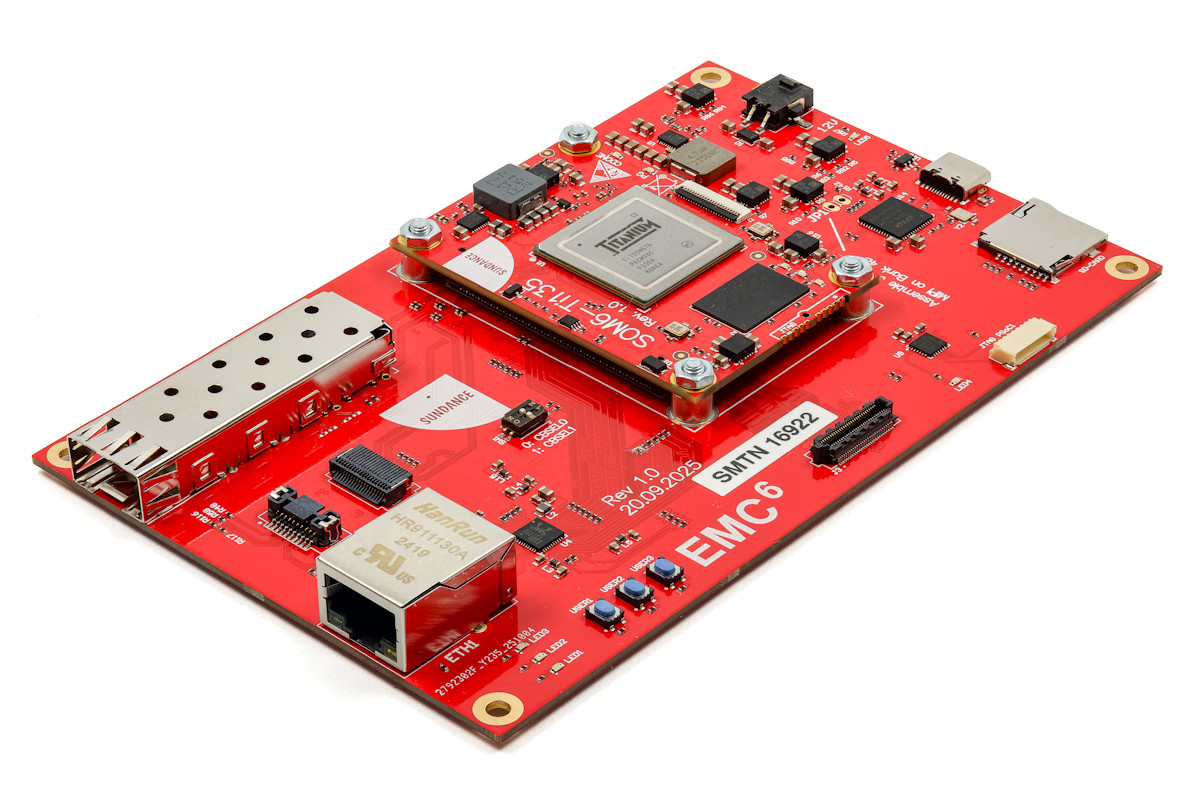

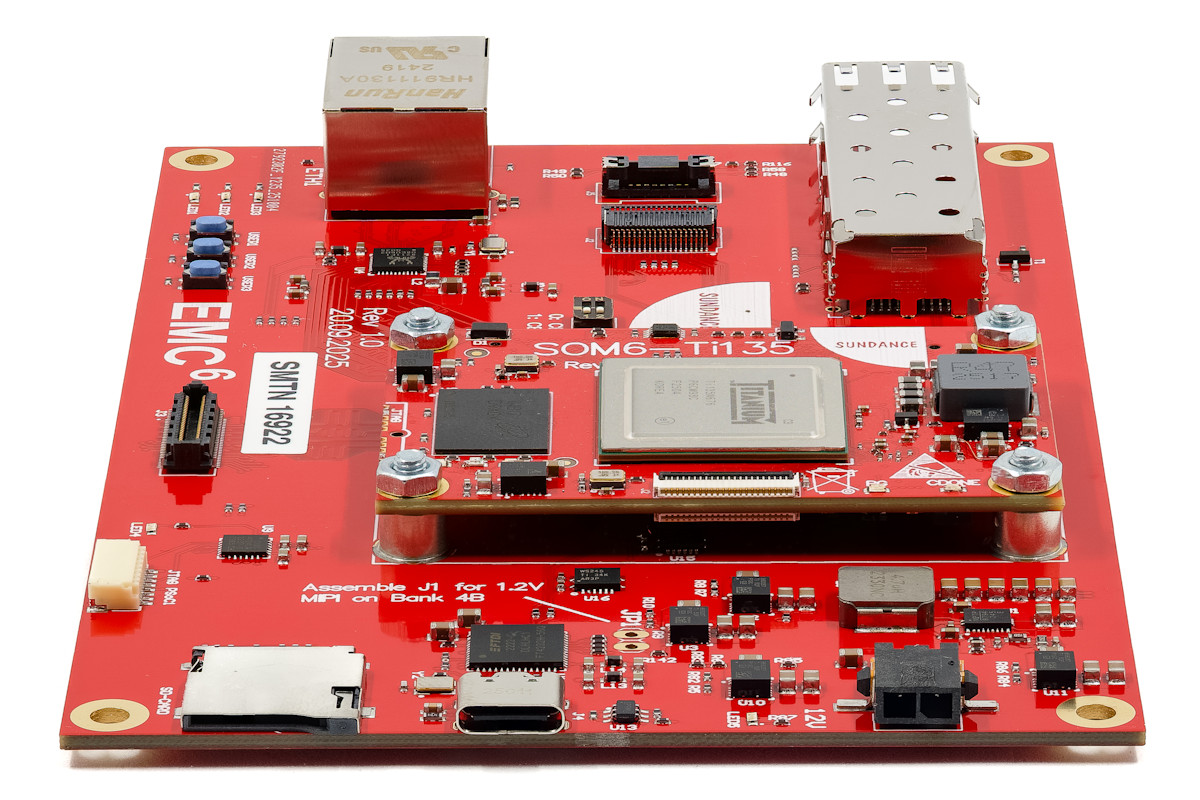

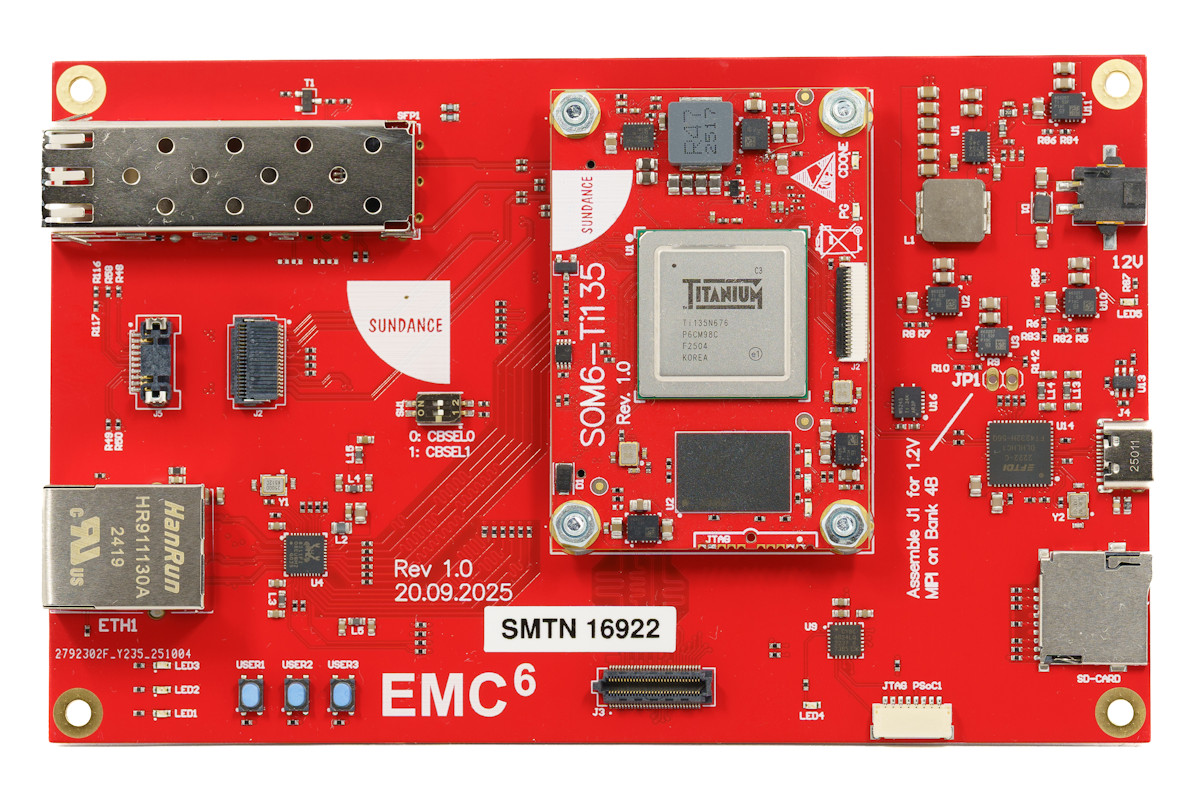

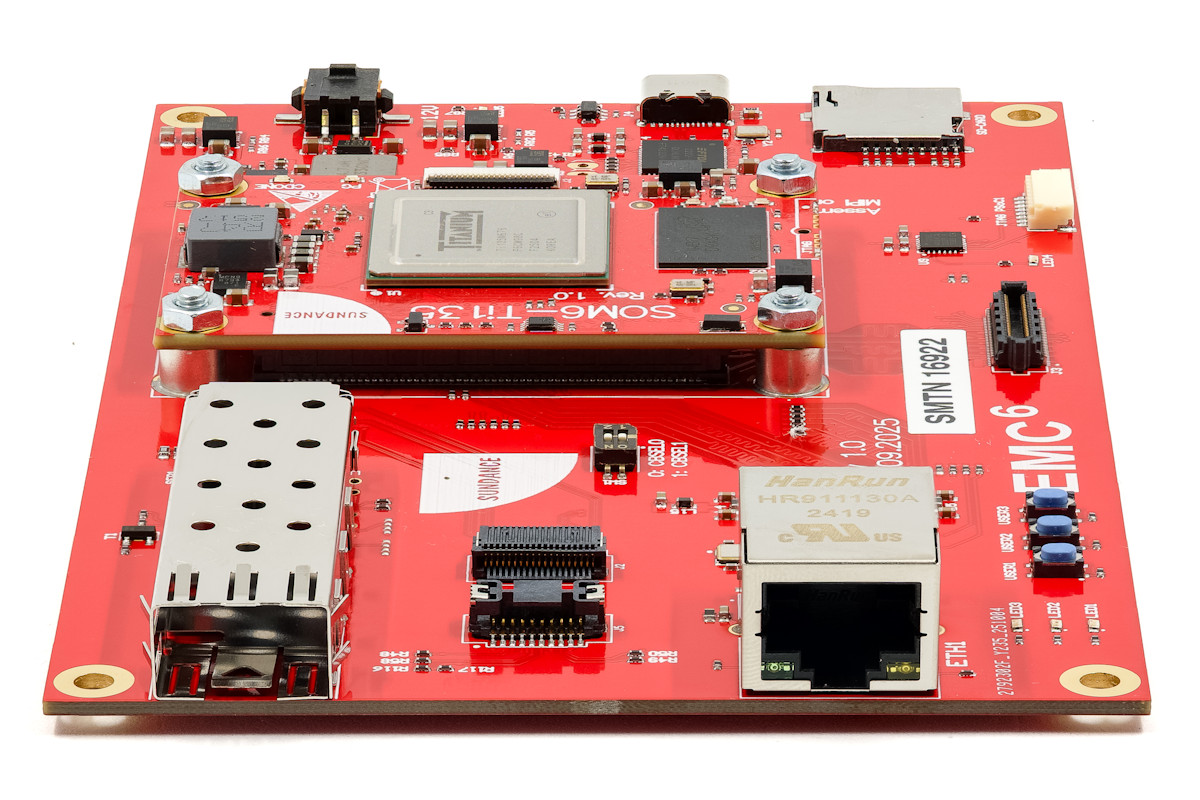

The SMT135-C Evaluation Board is based on a SoM6 Ti135, a compact, low-power System-on-Module (SoM) built around the Efinix Titanium Ti135 FPGA, in the high-density N676 package.
Designed for advanced embedded applications requiring performance, flexibility, and energy efficiency, the SoM6 Ti135 integrates a rich set of modern features in a form factor that emphasises modularity and interoperability.

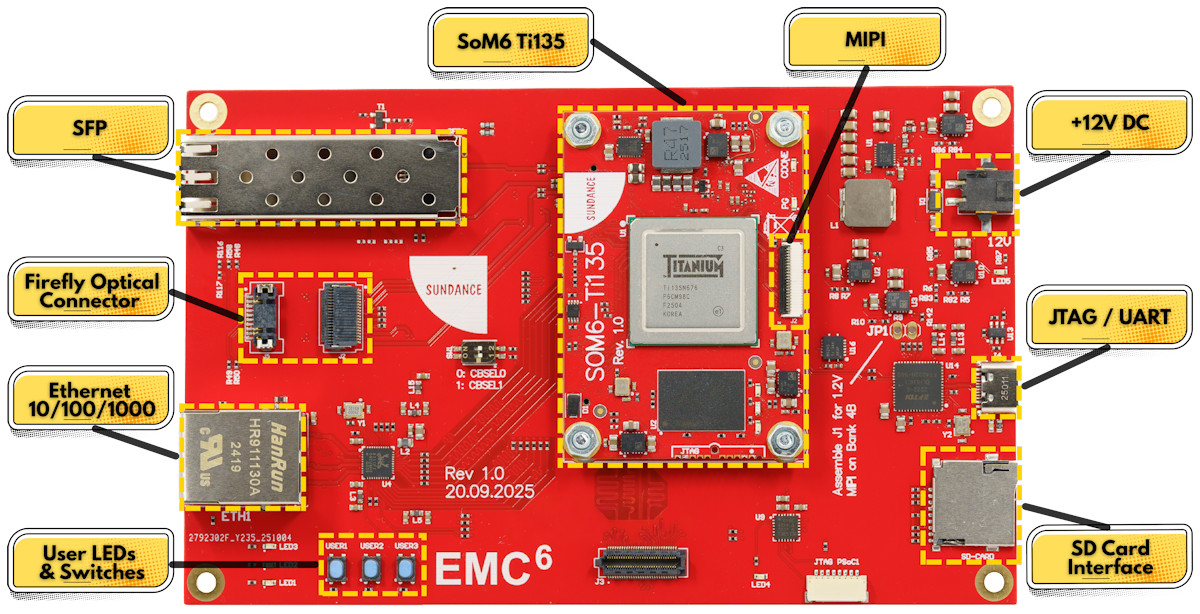

The SMT135-C expands on the SoM6’s functionality by providing a range of additional I/O options, including a Gigabit Ethernet Interface, SFP Interface, Samtec FireFly Mid-Board Optical Transceiver, SD Card Interface, and the option for 8-Lane MIPI TX and RX operation.
Key SoM Processing and Fabric Features – at the core of the SoM is the Efinix Ti135 FPGA, fabricated on a TSMC 16nm process and featuring the Quantum compute fabric.
This fabric includes:
- Up to 129,600 logic elements using eXchangeable Logic and Routing (XLR) cells
- 960 blocks of 10-kbit SRAM (totalling ~9.83 Mbits)
- 480 DSP blocks supporting integer and BFLOAT16 computations
- A quad-core hardened RISC-V processor with full support for RV32IMACFD extensions
These features combine to make the SMT135-C a strong candidate for edge computing, real-time control, and vision-centric workloads.
