Description

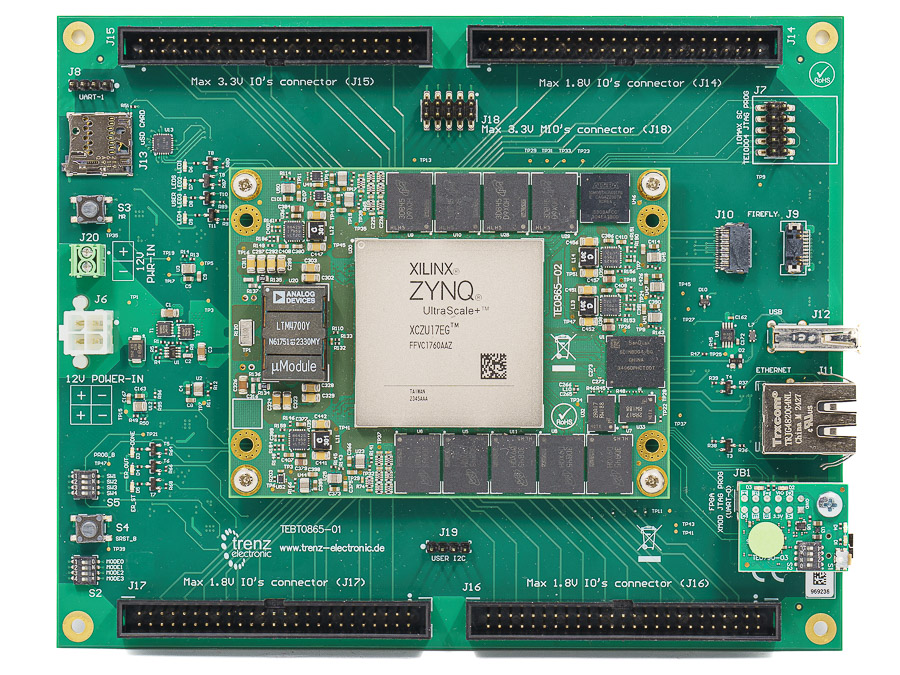

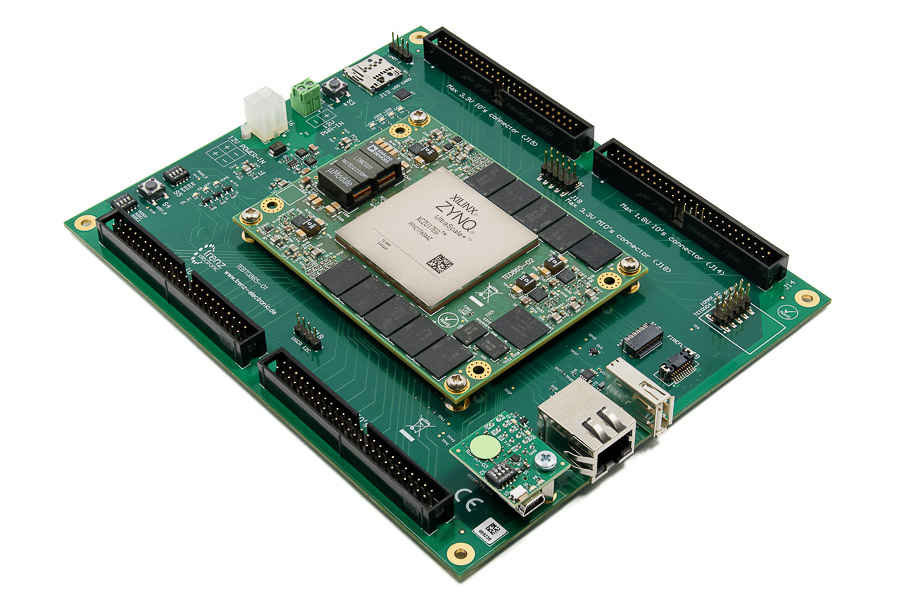

The Sundance SMT865 system comprises the TEBT0865 carrier board and the TE0865 MPSoC module from Trenz Electronic.

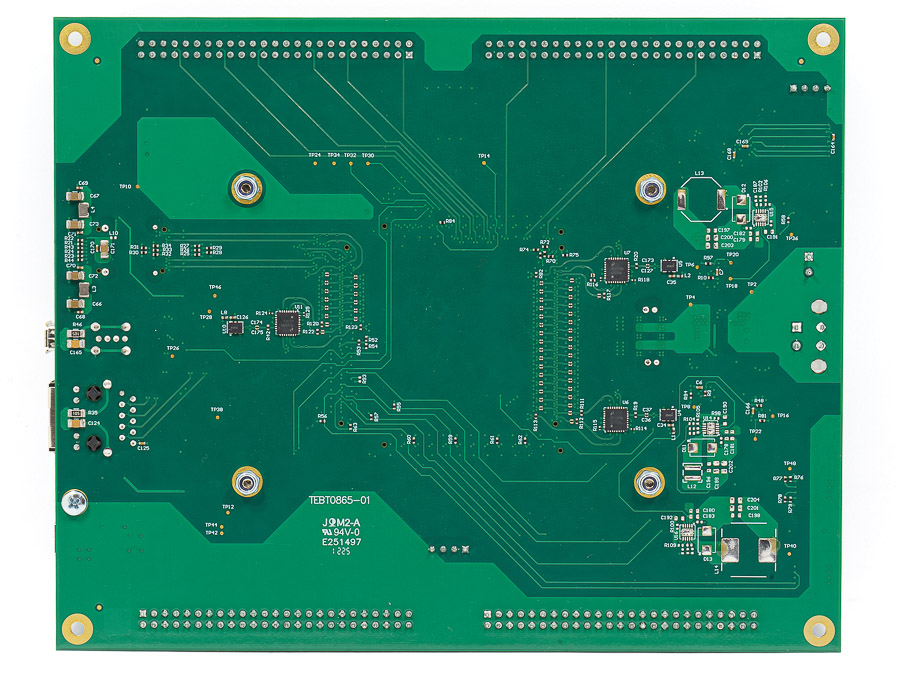

The TEBT0865 is a testboard for the TE0865 MPSoC module, it offers the interfaces and features below for further interactions.
Interfaces
- USB-A connector
- Gigabit RJ45 Jack
- SD Card Holder
- 4 x Samtec AcceleRate HD High-Density B2B connectors
- Firefly connector
- Connector for XMOD FTDI JTAG Adapter (JTAG und UART)
- Connector for TEI0004 (JTAG)
- UART Header
- I2C Header
- GPIO Header with 6 x GPIO
- 3 x connector with 12 I/O (VCCOmax = 1,8 V)
- Connector with 12 I/O (VCCOmax = 3,3 V)
On Board
- 2 x DIP switches
- 2 x Push buttons
- Pin Headers
- Voltage Regulators
Power
- 12.0 V input supply voltage
Dimensions
- 14.5 x 18 cm
The TE0865-02-DGE83MA is a high-performance MPSoC module integrating a AMD/Xilinx Zynq™ UltraScale+™ ZU17EG, 4 GByte DDR4 SDRAM with ECC on PS, 4 GByte DDR4 SDRAM on PL, 256 MByte Flash memory for configuration and operation, Gigabit Ethernet PHY, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.
- SoC / FPGA
- Device: AMD Zynq™ UltraScale+™ XCZU17EG-2FFVC1760E
- Speedgrade: -2
- Temperature range: Extended
- Package: C1760
- Graphics Processing Unit (GPU)
- RAM / Storage
- 4 GByte DDR4 SDRAM with ECC on PS
- 4 GByte DDR4 SDRAM on PL
- 2 x 128 MByte SPI Boot Flash (dual parallel)
- 8 GByte e.MMC memory
- 2 Kbit MAC-Adress serial EEPROM with EUI-48 Node Identity
- On Board
- Altera® Max® 10 FPGA as CPLD
- 6 x MEMS Oscillator
- Gigabit Ethernet Transceiver PHY
- Hi-speed USB2 ULPI Transceiver with full OTG support
- Interface
- 96 HD I/Os
- 240 HP I/Os
- 32 x PL GTH
- 16 x PL GTY
- 4 x PS GTR
- 4 x Samtec Accelerate HD B2B connector
- 21 MIOs
- Power
- 12V input supply voltage
- Variable Bank IO Power Input
- Dimensions
- 7.5 x 10 cm
