STEMlab 125-14 PRO Gen 2 Starter Kit
STEMlab 125-14 PRO Gen 2 Starter Kit - Image 2

STEMlab 125-14 PRO Gen 2 Starter Kit

£580.00

The Red Pitaya STEMlab 125-14 PRO Gen 2 Starter Kit is the perfect entry point into high-performance measurement, control, and signal processing. Whether you’re building next-gen test equipment, diving into radar or RF development, or simply need a reliable platform for precision data acquisition, this kit gives you everything required to get started—right out of the box.

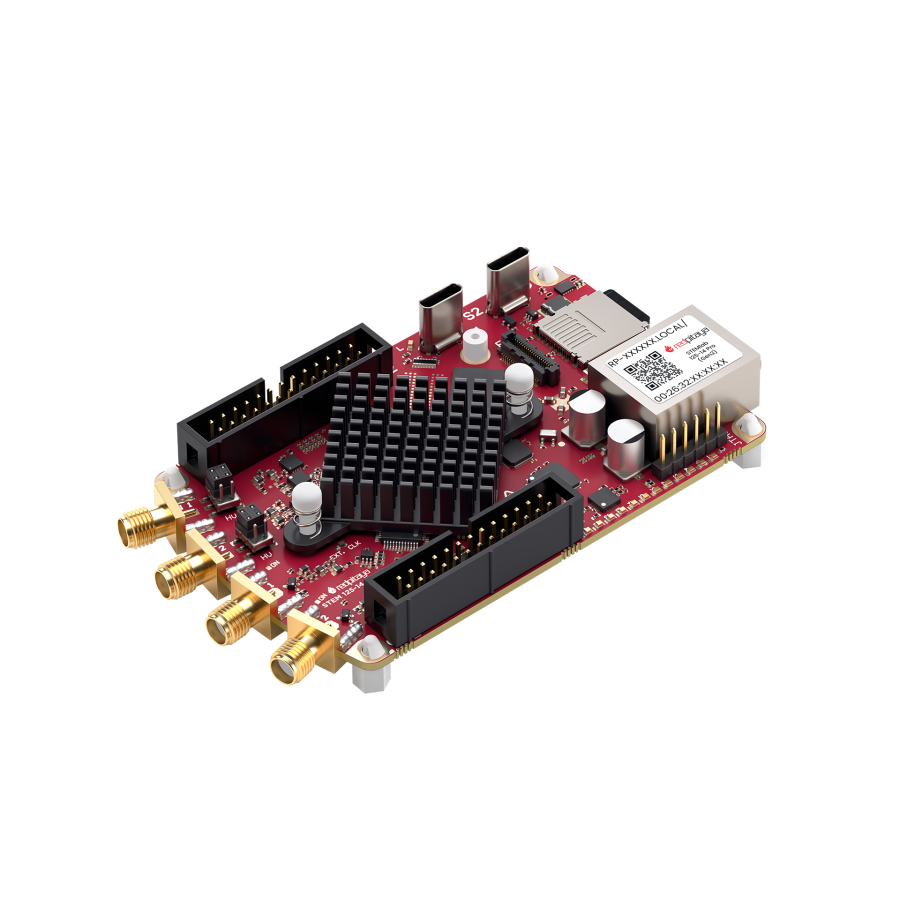

At the heart of the Starter Kit is the upgraded STEMlab 125-14 PRO Gen 2 board, featuring improved analog front- and back-ends, low-noise design, USB-C connectivity, and industrial-grade performance. Powered by the Xilinx Zynq 7010 SoC and 512 MB of RAM, it delivers high-speed data capture and flexible signal generation in a compact, reconfigurable platform. With 14-bit ADC/DAC, 125 MS/s sampling rate, ±20 V input range, and up to 60 MHz bandwidth, this board is built to handle demanding tasks in aerospace, photonics, RF, and industrial automation.

The Starter Kit includes all the essential accessories to get up and running quickly: a preloaded OS microSD card, power supply, Ethernet cable for remote access, two 100 MHz oscilloscope probes, and SMA-BNC adapters for flexible connectivity.

Whether you’re a researcher, engineer, or educator, this kit provides a ready-to-use platform for building smarter systems and accelerating innovation.

Category:

Description



The STEMlab 125-14 PRO Gen 2 Starter Kit is designed for professionals who need a fast, flexible, and reliable platform for test and measurement, data acquisition, and real-time signal processing. Built around the upgraded PRO Gen 2 board, this kit delivers low-noise performance, improved analog front- and back-ends, and high-speed connectivity—all in a compact, reconfigurable format.

Powered by the Xilinx Zynq 7010 SoC and 512 MB of RAM, the PRO Gen 2 features two input and two output channels, 14-bit ADC/DAC resolution, 125 MS/s sampling rate, and up to 60 MHz bandwidth—ideal for applications in industrial automation, radar, RF, photonics, and OEM system integration.

Everything you need is included in the box, so you can get started immediately—no additional components required.

Key Features

  • Improved analog front- & back-ends for lower noise and greater signal fidelity
  • 14-bit, 125 MS/s ADC & DAC with wide bandwidth (up to 60 MHz)
  • Xilinx Zynq 7010 SoC + 512 MB RAM for powerful processing and real-time control
  • Multi-channel synchronization & external/internal clock support
  • USB-C connectivity for power and console interface
  • Advanced triggering options via GPIO and extension connectors
  • Robust SMA connectors and high-voltage input tolerance (±20 V HV range)
  • Compact, open-source platform for rapid prototyping, integration, and research
  • Ideal for test engineers, automation specialists, and OEM developers

What’s in the box

  • Red Pitaya STEMlab 125-14 PRO Gen 2 board
  • MicroSD card (with OS image pre-installed)
  • 5V 5A USB type-C power supply
  • Ethernet cable
  • 2 × 100 MHz oscilloscope probes
  • 2 × SMA-BNC adapters
