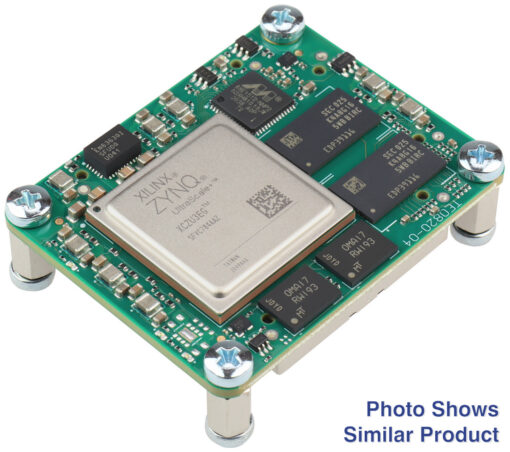

TE0820-05-3BE21MA

£450.00



MPSoC Module with AMD Zynq™ UltraScale+™ ZU3EG-1E, 2 GByte DDR4 SDRAM, 4 x 5 cm



Categories: , ,

Description

The Trenz Electronic TE0820-05-3BE21MA is an industrial-grade MPSoC module integrating a AMD/Xilinx Zynq™ UltraScale+™ ZU3EG, 2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O’s is provided via rugged high-speed stacking connections.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

TE0820 Technical Resource Manual

Features

  • AMD/Xilinx Zynq™ UltraScale+™ XCZU3EG-1SFVC784E
  • ZU3EG, 784 Pin Packages
    • Application Processor: Quad-Core ARM Cortex-A53 MPCore
    • Real-Time Processor: Dual-core ARM Cortex-R5 MPCore
    • Graphics Processor: Mali-400 MP2
    • Four high-speed serial I/O (HSSIO) interfaces supporting following protocols:
      • PCI Express interface version 2.1 compliant
      • SATA 3.1 specification compliant interface
      • DisplayPort source-only interface with video resolution up to 4k x 2k
      • USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
      • 1 GB/s serial GMII interface
    • 132 x HP PL I/Os (3 banks)
    • 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
    • 4 x serial PS GTR transceivers
  • Rugged for shock and high vibration
  • Graphic Processing Unit (GPU)
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • 2 GByte DDR4 SDRAM, 32-Bit databus-width
  • 128 MByte QSPI boot Flash in dual parallel mode
  • 8 GByte e.MMC Memory (up to 64 GByte)
  • Programmable quad PLL clock generator PLL for PS GTR clocks (optional external reference)
  • Gigabit Ethernet transceiver PHY
  • MAC address serial EEPROM with EUI-48 node identity
  • Hi-speed USB2 ULPI transceiver with full OTG support
  • All power supplies on board
  • Evenly spread supply pins for good signal integrity
  • 4 x 5 cm form factor

Block Diagram

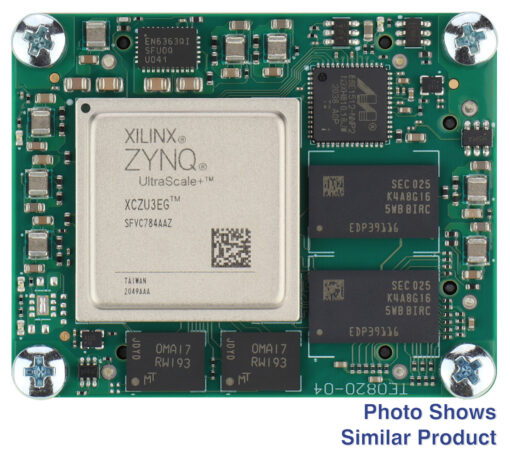

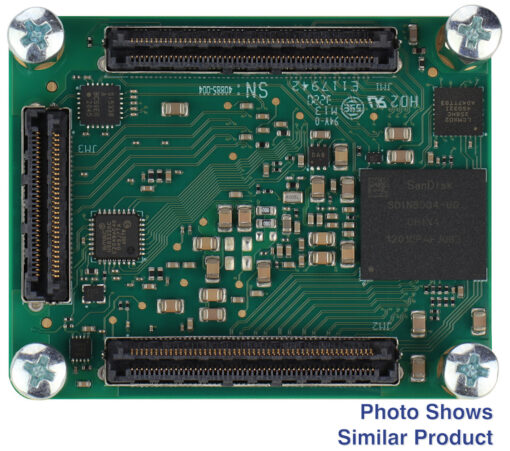

Labelled Image

  1. Xilinx Zynq UltraScale+ MPSoC, U1
  2. 1.8V, 512 Mbit QSPI flash memory, U7
  3. 1.8V, 512 Mbit QSPI flash memory, U17
  4. 8 Gbit (512 x 16) DDR4 SDRAM, U2
  5. 8 Gbit (512 x 16) DDR4 SDRAM, U3
  6. Marvell Alaska 88E1512 integrated 10/100/1000 Mbps energy efficient ethernet transceiver, U8
  7. 6A PowerSoC DC-DC converter (PL_VCCINT, 0.85V), U5
  8. B2B connector Samtec Razor Beam™ LSHM-150, JM1
  9. B2B connector Samtec Razor Beam™ LSHM-150, JM2
  10. B2B connector Samtec Razor Beam™ LSHM-130, JM3
  11. 8 GByte eMMC memory, U6
  12. Lattice Semiconductor MachXO2 System Controller CPLD, U21
  13. I2C programmable, any  frequency , any output  quad clock generator, U10
  14. Highly integrated full featured hi-speed USB 2.0 ULPI transceiver, U18
  15. LED D1(Red) Done Pin
  16. LED D2 (Green) CPLD Status, User LED
  17. LED D3 (Red) PS Error
  18. LED D4 (Green) PS Error Status
