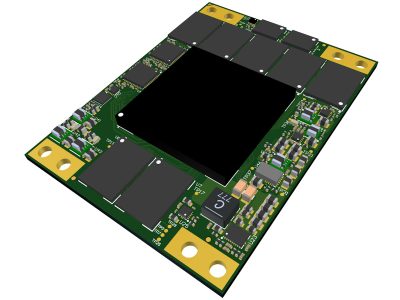

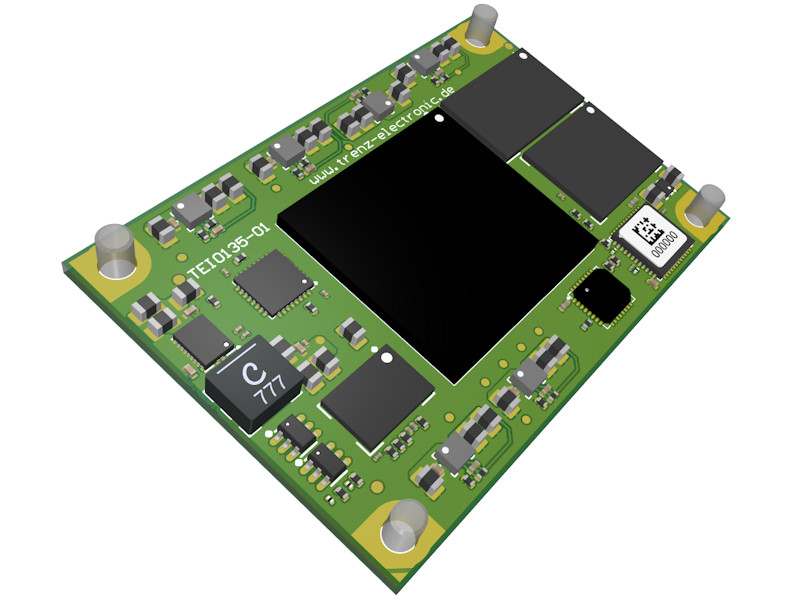

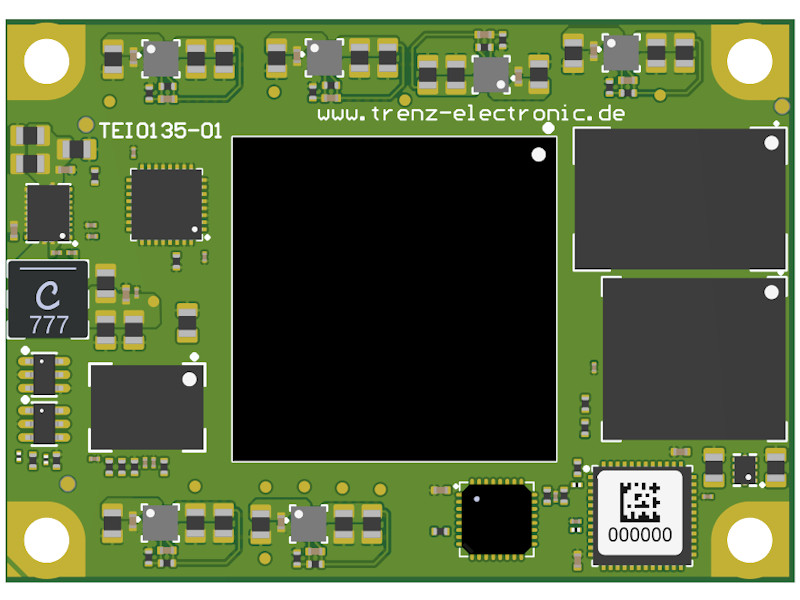

Description
Key Features
SoC
- Altera Agilex 3 SoC C-Series, W-code, package B23C (931pin)
- Possible variants: A3C 100, 135
RAM / Storage
- QSPI Flash, single; 256 Mbit (32 MByte) (up to 1 Gbit (128 MByte))
- LPDDR4 SDRAM (32 Bit) HPS; 1 GByte (up to 4 GByte)
- eMMC (selectable eMMC or SDIO); 8 GByte (up to 64 GByte)
- 2x EEPROM 2kbit with MAC address
IO Resources
- Gigabit transceivers: 4 (support HIP PCIe x4 Gen3), 12.5 Gbit/s
- HSIO: 24 DIFF / 48 SE + MIPI D-PHY (4 Data+ CLK + REF CLK)
- HVIO: 120 SE
- HPS: 12 I/O (SD3.0/eMMC, UART, I2C, I3C etc.)
On-Board Peripherals
- Ethernet (HPS): 1x Gigabit PHY (RGMII)
- Ethernet (FPGA): 1x Gigabit PHY (RGMII)
- USB: 1x, USB2.0 PHY (ULPI), USB3.1 Support 5Gbps (using XCVR)
- Security: Trusted Platform Module TPM 2.0
- Clock: 25 MHz (SDM), 25 MHz (HPS), 200 MHz (LPDDR4), diff. CLKs from B2B
Interface
- 2x 240-pin Samtec AccelerateHD ADM6 connector
Power
- 5 V … 12 V power supply
Dimension
- 40 x 56.4 mm
