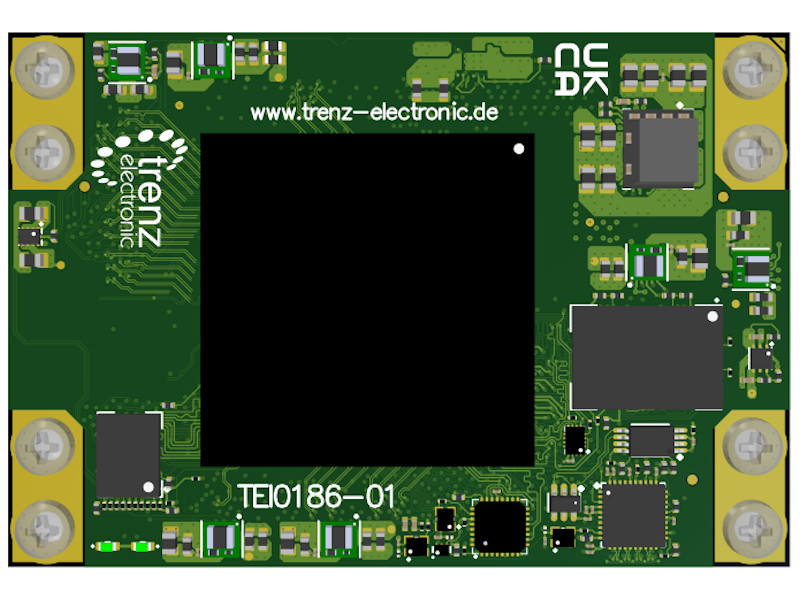

Description
Key Features
SoC
- Altera Agilex 5 SoC E-Series Device Group B (A5ED028BB32AE4S)
- Package B32A; compatible device:
- Device Group A, Specification C,D: A5E 013A, A5E 028A
- Device Group B, Specification A,B,C,D,E: A5E 008B, A5E 013B,
- A5E 028B (default)
- Assembly variants possible on request
RAM / Storage
- 1x QSPI Flash, 32MB (Expandable up to 256MB)
- 1 GB LPDDR4 SDRAM (32 Bit) for HPS (Expandable up to 4 GB)
- 8 GB eMMC (Expandable up to 64 GB)
- 1x 2Kbit & 1x 128Kbit EEPROMs Memory
IO Resources
- MGT*: up to 12x transceivers (up to 28 Gbit/s)
- HSIO: 96 DIFF / 192 SE + MIPI D-PHY (4 Data+ CLK + REF CLK)
- HVIO: 200 single ended
- HPS IO: 19 I/O (SDIO, UART, I2C, I3C, GPIOs)
* depends on FPGA assembly variants, IO resources could be changed
On-Board Peripherals
- Gigabit Ethernet PHY (RGMII)
- USB2.0 PHY (ULPI), Support USB3.1 Gen1 5Gbps (use 1 transceiver)
- Security: Trusted Platform Module TPM 2.0
- Clocks for LPDDR4 SDRAM, GigE PHY, USB PHY, SDM FPGA
- SD3.0 (optional)
Interface
- 3x 240-pin Samtec
- Accelerate HD (ADM6) connectors
Power
- 5 V … 12 V power supply
Dimension
- 52 x 76 mm
