Description

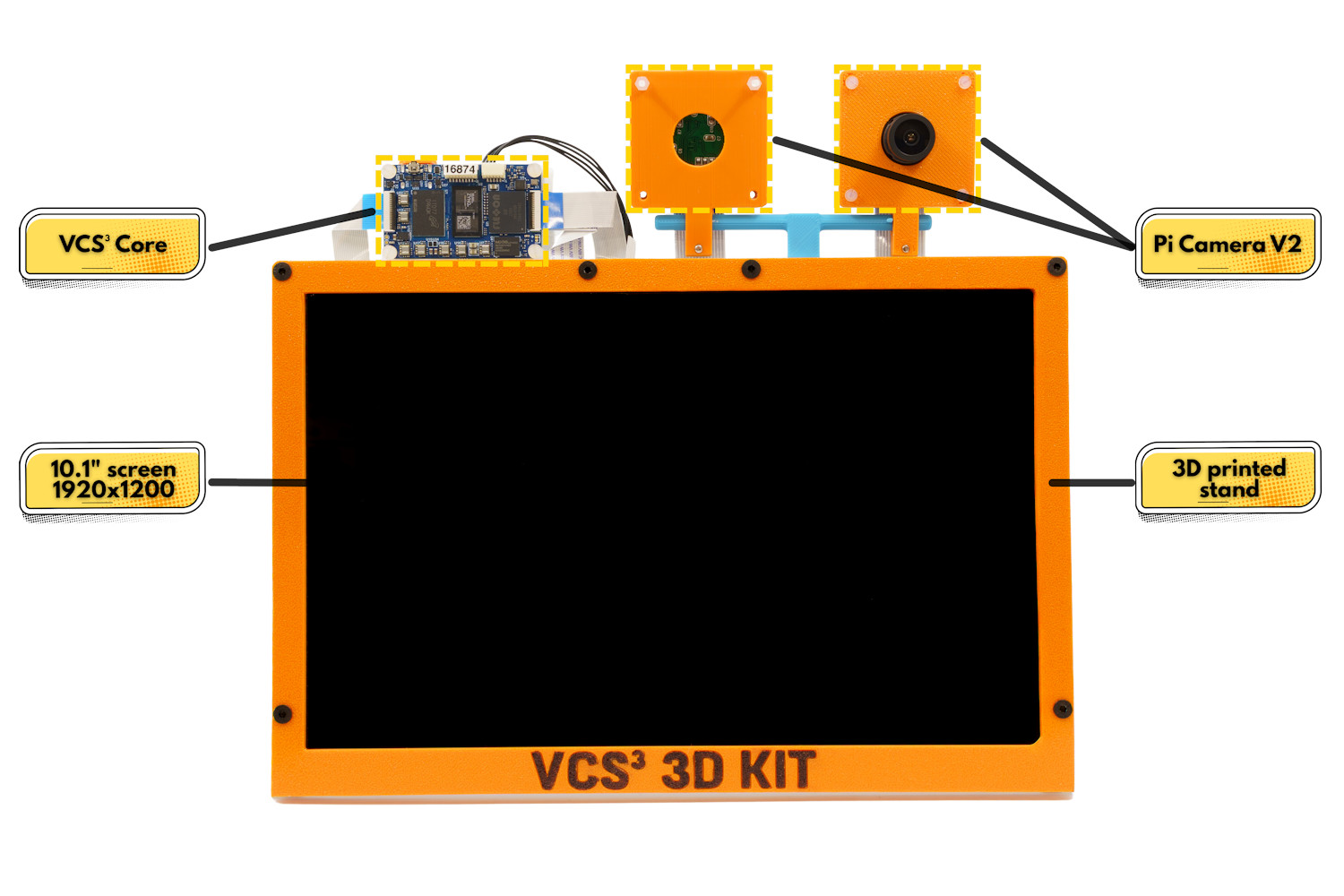

The VCS³ 3D Kit is a self-contained hardware platform that houses the Sundance VCS³ Core, two cameras, a screen, and the VCS³ RP2040. It demonstrates the VCS³ Core’s compact size and performance in video processing applications.
The VCS³ Core is a small single-board computer with an AMD© ZYNQ™ device with integrated ARM CPUs and FPGA fabric. Measuring just 30mm x 50mm, this tiny workhorse can be placed almost anywhere, opening up the benefits of FPGAs to many more applications.
The VCS³-3D Kit contains:
Electrical components:
- 1x screen
o Model: B101UAN01.7 (10.1”, 1920×1200, 34 pin) - 1x fan
o Model: MC30060V2-000U-A99 (30mm x 30mm, 5V) - 1x mini JST 2 pin male connector
o Must be soldered to fan wires - 2x camera
o Model: Raspberry Pi Camera Module 2 (15 pin) - 1x Sundance VCS³ RP2040
o Model shown in images is V1.0 - 1x Sundance VCS³ Core
3D printed parts:
- 1x VCS3 Holder
- 1x Bezel
- 1x Frame
- 2x Leg
- 2x Camera Mount
Cables:
- 1x 4 pin MOLEX (150mm length min)
- 1x 10 pin JTAG (275mm length min)
- 1x 34 pin FFC (0.5mm pitch, 5.98” length)
- 1x 22 pin FFC (0.5mm pitch, 7.97” length)
- 2x 22 pin FFC (0.5mm pitch, 12” length)
Fixings:
- 4x M2.5 25mm plas�c screws
- 4x M2.5 nut
- 12x M2 12mm plas�c screws (only 11x required if using fan with 3 moun�ng holes)
- 12x M2 nut
- 6x M3 20mm countersunk screws
- 4x M3 10mm countersunk screws
- 10x M3 nut
Getting Started Guide:
VCS³ 3D Kit – Getting Started Guide
Build Guide:
The VCS³ utilises an AMD UltraScale+ MPSoC coupled with high-speed LP-DDR4 memory to produce a highly compact evaluation platform. Together with four digital camera interfaces, a 9-axis IMU, and a CAN-Bus interface, this platform is ideally suited for autonomous machines, cameras or automation.
