Description
PanaTeQ’s VPX3-ZU1B-SDR-C is a 3U OpenVPX modules based on the Zynq UltraScale+ MPSoC device from AMD coupled to RadioVerse Analog Devices RF Wideband Transceiver ADRV9009 for a broad range of applications such as Software Defined Radio, MILCOM, massive MIMO, Phase Array Radar and Electronic Warfare.
PanaTeQ provides solutions for Ruggedised Air-Cooled and Conduction Cooled systems.

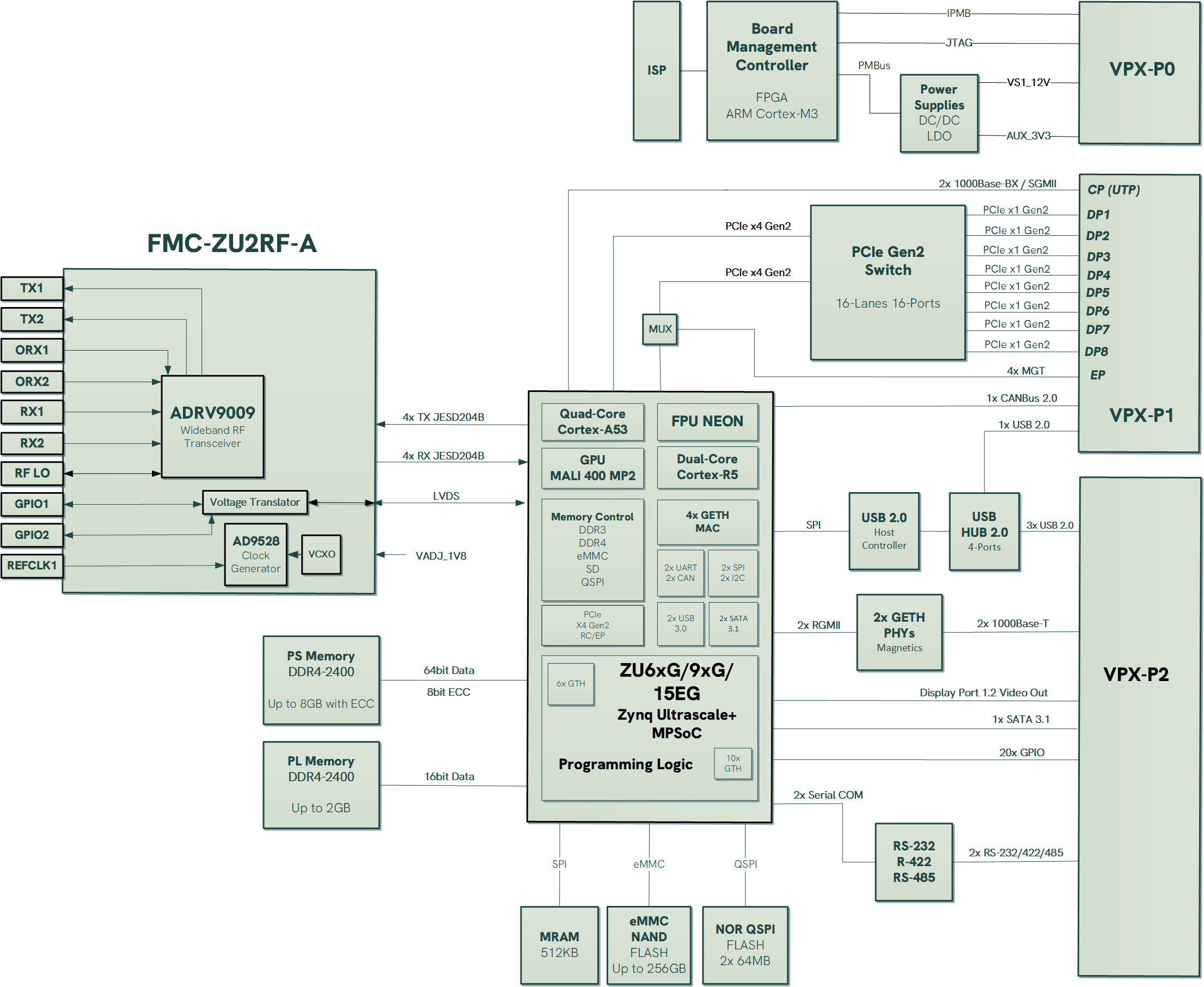

The VPX3-ZU1B-SDR-C module is based on the following PanaTeQ’s sub-modules (boards):
The VPX3-ZU1B is a 3U OpenVPX module based on an AMD Zynq Ultrascale+ MPSoC with a FMC 57.1 site, HW/SW compatible with the ZCU102 Evaluation board from AMD.
The FMC-ZU2RF-A is a FMC based on an Analog Devices ADRV9009, HW/SW compatible with ADRV9009 Evaluation Board from Analog Devices.
