Description
PanaTeQ’s VPX3-ZU1B-SDR400 is a 3U OpenVPX modules based on the Zynq UltraScale+ MPSoC device from AMD coupled to RadioVerse Analog Devices RF Wideband Transceiver AD9361 for a broad range of applications such as Software Defined Radio, MILCOM, massive MIMO, Phase Array Radar and Electronic Warfare.rnrnPanaTeQ provides solutions for Ruggedized Air-Cooled and Conduction Cooled systems.

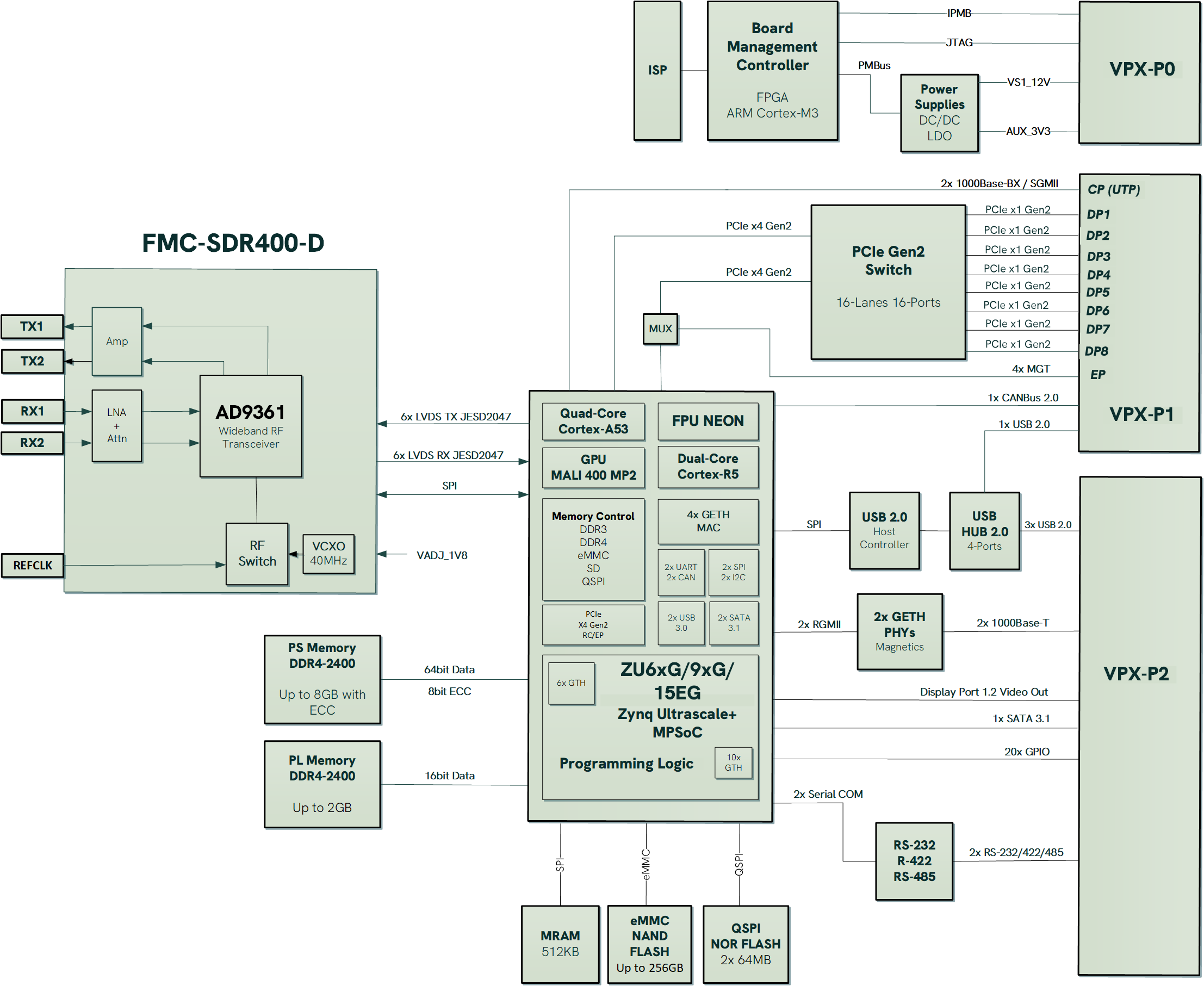

These VPX3-ZU1B-SDR400 module is based on the following PanaTeQ’s sub-modules (boards):rnrnThe VPX3-ZU1B is a 3U OpenVPX module based on a AMD Zynq Ultrascale+ MPSoC with a FMC 57.1 site, HW/SW compatible with ZCU102 Evaluation board from AMD.
The FMC-SDR400 is a FMC based on an Analog Devices AD9361.
