Description

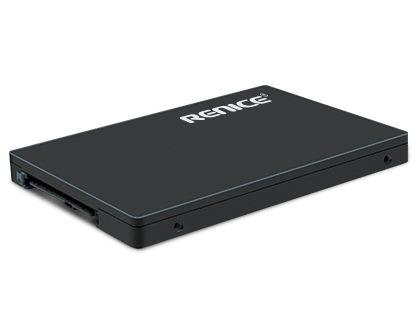

Renice X10 Series PCIe U.2 NVMe Industrial SSD is a high-performance, high reliability solid state drive (SSD) solution, built with NAND Flash memory, DRAM memory, and the advanced PCIe NVMe controller in a standard 2.5”-inch form factor housing. Using a 1-bit-per-cell (SLC) NAND configuration, U 2 NVMe SSD is well”-suited for write”-intensive applications used in wide industrial SSD temperatures (-40°C ~+85°C) and high stress environments, such as aviation, rail transportation, marine equipment, seismic instrumentation, big data centre, base stations, industrial control, and factory automation.
Features
- Basic Information
- Interface: PCIe 3.0×4 (Compatible with NVMe Express 1.2)
- Form Factor: 2.5′-inch (100.0mm x 70.0mm x 9.5mm) L×W×H
- Capacities: 960GB；1.92TB
- Input Voltage: 12V (±10%)
- Type: Industrial SSD
- Performance
- Max Sequential Data Read/Write: 2600/1900MB/s
- 4Kb Random Read/Write IOPS: 600,000 / 160,000
- MTBF: >2,000,000 hours @25C
- Flash Memory Management
- Flash management algorithm: Static and dynamic wear’-leveling, bad block management algorithm
- SMART (Self’-Monitoring, Analysis and Reporting Technology): √
- NAND Configuration: 1 bit per cell (R’-SLC)
- Other Functions
- Support Power Failure Protection: √
- Support Secure Erase (optional): √
- AES 256′-bit Encryption: √
- Thermal Adaptive Function: √
- Support TRIM: √
- Temperature Ranges
- Operation: -40°C~ +85°C
- Storage: -50°C~ +95°C
- Humidity & Vibration & Shock
- Humidity: 5-95%
- Vibration: 10Hz-2000Hz, 20 G (X, Y, Z axis, 1 hour /axis)
- Shock:
- Peak Acceleration: 1,500 G, 0.5ms(Half-sine wave, ±X,±Y,±Z axis, 1 time/axis)
- Peak Acceleration: 50 G, 11ms(Half-sine wave, ±X,±Y,±Z axis, 3 times/axis)
