Description

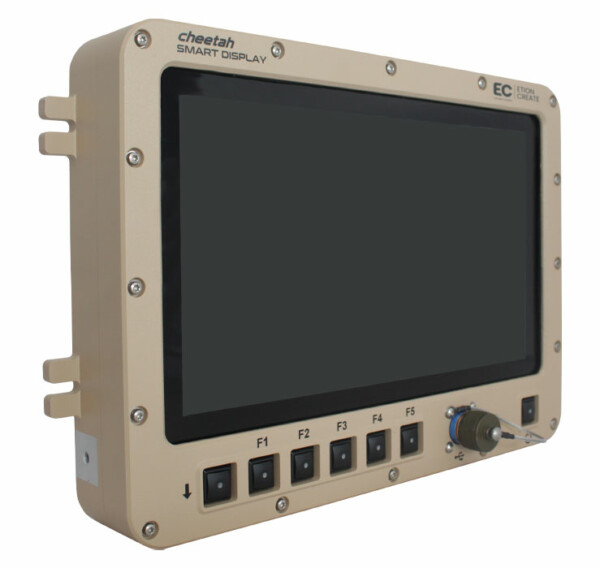

The DS600 is a rugged Smart Display family featuring an 11.6” display, the latest Intel™ Atom® E3900 series of embedded processors and a Video Processing Module (VPM) for high-performance end-to-end Full HD (FHD) video processing capability, suitable for industrial and military applications. It has a sunlight readable FHD (1920×1080) color TFT display with wide viewing angles, high brightness and touch screen technology with glove support.
The DS600 display is driven by an Intel ATOM® E3900 series based single board computer (SBC) with a quad core processor that offers exceptional efficiency with real-time video processing. The integrated
graphics processor (GPU) running at up to 650MHz, achieves greatly increased video encode and playback performance, with Ultra HD 4k display resolution and features such as video and text overlay, video scaling and alpha blending.
The SBC provides an onboard SSD with Gigabit Ethernet, USB2, USB3, RS422, CAN and GPInput interfaces. An optional mSATA SSD (up to 1024 GB) is available for storage and data logging.
The Intel® Time Coordinated Computing Technology provides network synchronisation to within 1μs, greatly improving the real time deterministic behavior on a system level.
Compressed (IP) video is supported through the Ethernet interface. Hardware assisted H.264/H.265 decoding supports multiple inputs, which are then further processed by the GPU. RTSP video streaming
(amongst others) is supported.
The optional Video Processing Module (VPM) acts as a front-end video processor which is available in different configurations. The standard VPM option provides frame grabbing, video scaling, de-interlacing, colour format and frame rate conversion of up-to four 3G-SDI inputs. It supports 10-bit 4:4:4 video processing with a high-bandwidth video pipeline.
Other standard and custom VPM options are available for PAL, RGB, HDMI and other video formats. Video output options are also available.
Specifications
Display (Color TFT with capacitive Touch Screen)
- Size (aspect ratio) : 11.6” Diagonal (16:9)
- Resolution : 1920 x 1080 (Full HD)
- Display Luminance : 600 NITS
Single Board Computer (SBC)
- Intel ATOM® x7-E3950 quad core processor with 4 GB DDR3L RAM
- Integrated graphics processor (GPU) with video overlay, scaling & blending
- Increased H.264 compressed video encode and decode/playback performance
- Onboard 64 GB SATA SSD and optional mSATA storage up-to 1024 GB
Standard Video Processing Module (VPM)
- Up-to 4x 3G-SDI video inputs
- Scaling, de-interlacing, alpha blending, PIP, Text Overlay etc.
- 10-bit 4:4:4 video processing with high-bandwidth video pipeline
- Other standard VPM input options are also available, consult OEM for details
Interfaces
- 1x Ethernet 10/100/1000 Mb/s
- 2x USB 2.0, 1x USB 3.0 (option), 2x RS422, 1x RS232/422, CAN (option), GNSS (option), 2x GPInput
- User definable hard keys (x6) and soft keys, Power On/Off switch
- +28VDC MIL-STD-1275E Power input
Order Options (Generic order code = DS6X-I-O-U-CG-AS-R)
- X: VPM: (0, 2X, 6X) 0=No VPM, 2X=Standard VPM, 6X=Custom VPM
- I: Video Inputs (mDnA) m=Digital(D), n=Analogue(A) number of inputs
- O: Video Outputs (mDnA) m=Digital(D), n=Analogue(A) number of outputs
- U: USB 3.0 (0,1) Number of USB 3.0 interfaces
- CG: CAN & GNSS (mCnG) m=CAN (C), n=GNSS (G) interfaces
- AS: Additional storage 0, 256, 512 or 1024 GB
- Ruggedization Level 0=Commercial, 1=Industrial, 2=Military
Standard Smart Display = DS620-I2D-O0-U0-C0G0-AS0-R1
- Standard VPM, 2x SDI in, 1x Gbe, 2x USB2, 2x RS422, 1x RS232/422, 2x GPinput
- Excluded options: Video outputs, USB3, CAN, GNSS
- Industrial ruggedization level
Applications
Situational Awareness Display
- Overwatch and Alarm function to monitor area of interest
- Artificial Intelligence detection of Objects of Interest
- Fusion of Infra-red/Night Vision/ Optical Sensors
Battle Panel Display
- Joystick USB interface to control Pan and Tilt sensors
- Auto Tracker function to control Pan and Tilt sensors
