Description

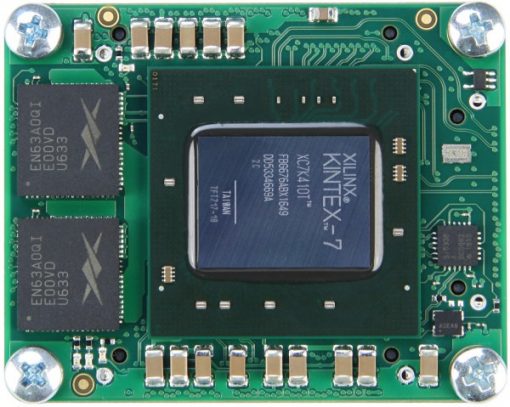

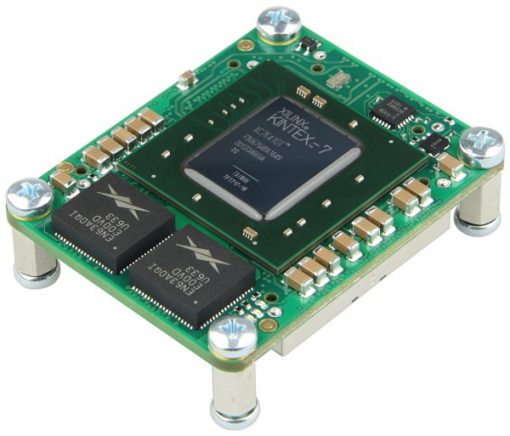

The Trenz Electronic TE0741-03-410-2CF is a FPGA module integrating a Xilinx Kintex-7 410T FPGA, 8 MGTs (Multi Gigabit Transceivers) and 32 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/Os is provided via rugged high-speed stacking strips.
All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.
All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
Features
- Xilinx Kintex-7 T FPGA XC7K410T-2FBG676C
- 256 MBit (32 MByte) Quad-SPI Flash memory (for configuration and operation) accessible through:
- FPGA
- JTAG port (SPI indirect)
- 8 MGTs (multi gigabit transceivers)
- FPGA configuration through:
- JTAG (B2B connector)
- SPI Flash memory
- 25 MHz low jitter oscillator with shutdown control
- Programmable quad clock generator
- On-board high-efficiency DC-DC converters
- MGT voltage regulators with control enable
- Core voltage regulator: 20 A (2 x Enpirion DC/DC regulators with load-sharing)
- Supply voltages: either 3.3 V or 3.3 V and 5 V

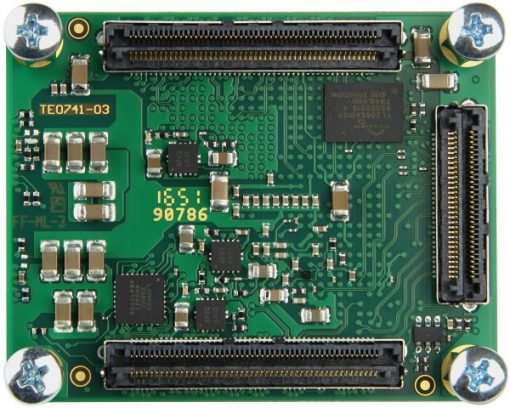

- Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
- Up to 144 (94 for 70T) single-ended FPGA I/O pins available on B2B strips
- 2 user LEDs, 1 DONE FPGA pin LED
- AES bit-stream encryption
- Evenly spread supply pins for good signal integrity
Other assembly options for cost or performance optimization plus high volume prices available on request.
Recommended Software
- Kintex-7 XC7K70T-2CF, Kintex-7 XC7K160T-2CF: Xilinx Vivado Webpack (free license)
- Kintex-7 XC7K325T-2CF, Kintex-7 XC7K410T-2CF: Xilinx Vivado Design Suite
You can find all Xilinx Vivado versions here.
