LXD30K0

£6,700.00£8,700.00

With the LXD30K0 it is possible to perform low latency data acquisition and playback of analogue signals at 5.4 Gsps with a resolution of 12 bits.

Clear
SKU: N/A Category:

Description

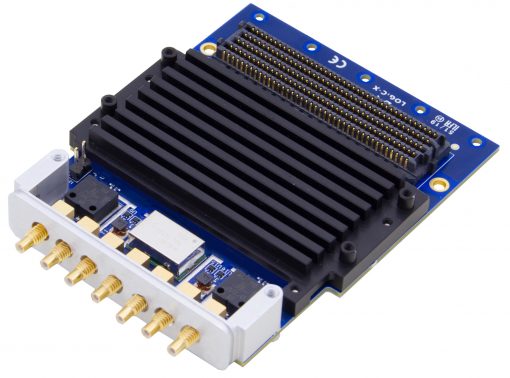

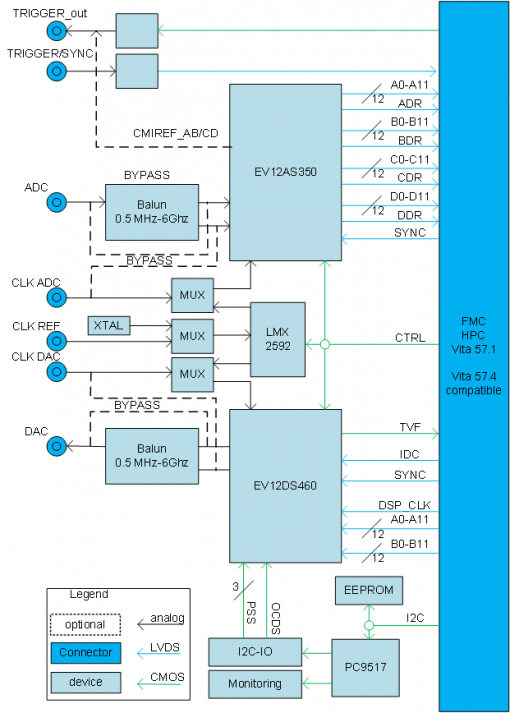

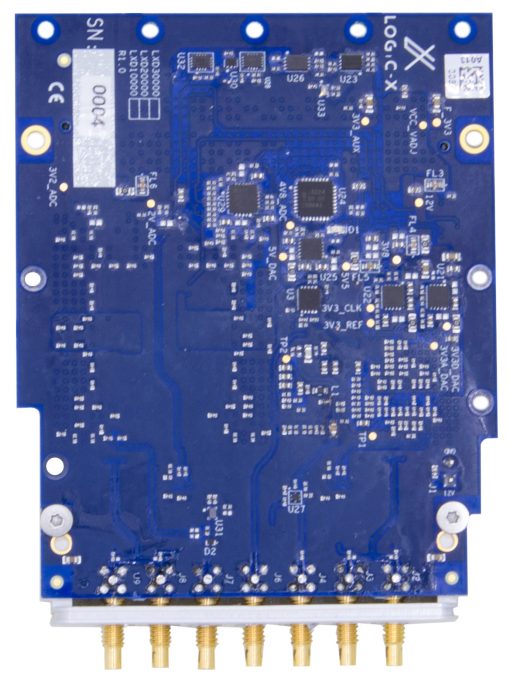

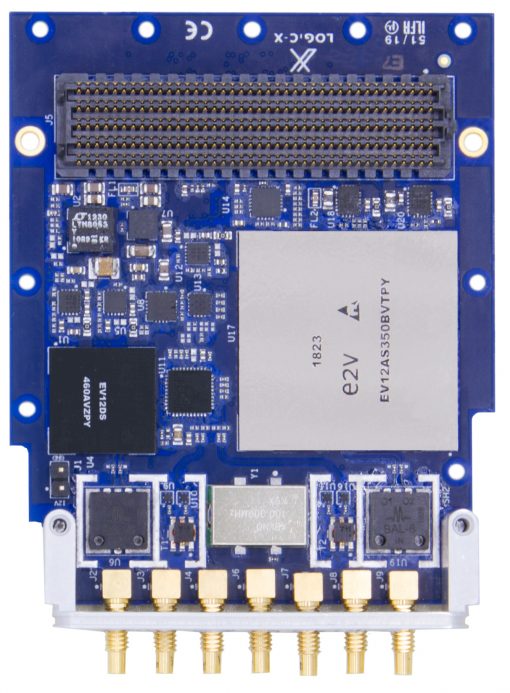

With the LXD30K0 Logic-X provides a unique analogue interface product that is based on the 12-bits low latency wide bandwidth ADC (EV12AS350A) and DAC (EV12DS460) from Teledyne E2V. Multi-card synchronization is supported thanks to a flexible clock tree and external synchronization trigger input.

Analogue input

With an analogue input stage that has a very wide input bandwidth from 0.5 MHz up to 4.8 GHz and the low latency 5.4 Gsps ADC from E2V (EV12AS350A) the LXD30K0 delivers unmatched performance with regards to SFDR, close in phase noise and latency (7.2 ns) on its analogue input channel. Sampling at 5.4 Gsps offers an instantaneous bandwidth of 2.7 GHz

Analogue output

Surpassing the analogue input, the analogue output offers an even lower latency (1.2 ns) using the EV12DS460 DAC device from E2V. The output bandwidth ranges from 0.5 MHz to 6 GHz and the instantaneous output bandwidth is 1.35 GHz

12 bit

Both the ADC and DAC offer 12-bits resolution further contributing to achieving best in class signal to noise ratios.

Low Latency

It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectivity to the host carrier. This can be less than 18 ns, depending on the carrier that is used

Clock tree

The onboard low noise clock generator ensures easy integration into small single-channel systems as well as standalone operation. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock

Applications

Systems that will benefit greatly from this product are:

  • Electronic Warfare systems
  • Radar waveform generators and receivers
  • Advanced digital radio frequency memory (DRFM) sys-tems
  • Medical systems
  • Telecommunication systems

Specification

Product Information

Number of analog input channels:  1
Number of analog output channels:  1
Front panel IO connector type:  SSMC or MMCX
Front panel IO type:  ADC/DAC
Form Factor:  FMC – High pin count (HPC)

Analog input specification

Input coupling:  AC coupled
Input maximum sample rate:  5.4 Gsps
Input number of bits:  12 bits resolution
Impedance:  50 Ω
Input bandwidth AC coupled:  0.5 MHz – 4.8 GHz
Input AC full scale power:  +8.5 dBm

Analog output specifications

Output coupling:  AC coupled
Output maximum sample rate:  2.7 Gsps (5.4 GHz update rate)
Output number of bits:  12 bits resolution
Impedance:  50 Ω
Output bandwidth AC coupled:  0.5 MHz – 6 GHz
Output AC full scale power:  -5 dBm (NRZ mode)

Legislation and Environmental

Supported operating temperature:  Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization:  standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant:  Yes – RoHS Phthalates Compliant
SVHC:  Product contains no SVHC (15-May-2020)
Country of origin:  The Netherlands ( Europe)
Tariff Number (HS code):  854231 – Electronic printed circuits
ECCN:  3A002.h.1.c

Downloads

 LDX30K0 – Data Sheet

   LDX30K0 – User Manual
