PXIe800

ZYNQ ULTRASCALE+ MPSOC, PXIE CARD WITH FMC



CONTACT US FOR A QUOTE
Categories: , ,

Description

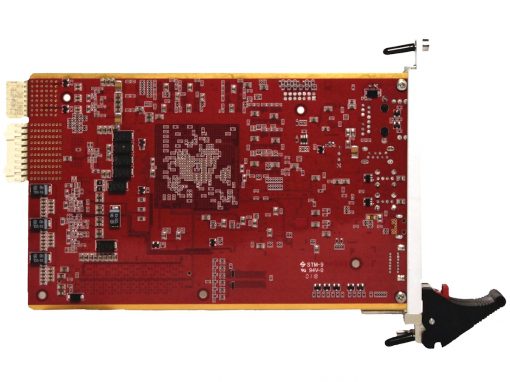

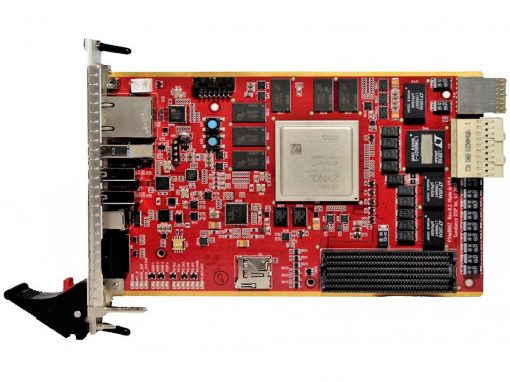

PXIe800Z is based on Xilinx Zynq UltraScale+ MPSoC FPGA family. Depending on the choice of FPGA  (XCZU7EV / XCZU7EG/ XCZU11EG / XCZU7CG in  C1156 package) it can be used for High-Performance Computing (HPC), digital communication or image processing, including AR/VR applications. Sundance DSP supplies several frame grabber modules ranging from MIPI to Cameralink which can create a suitable platform for AR/VR solutions. The selection of FPGA used on this board and their available resources are shown below.

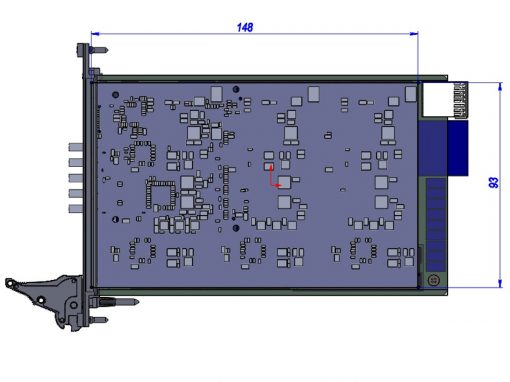

The platform can take standard FMC based hardware or custom size FMC hardware solution which offer much larger PCB area for design and front panel area for placing IO interfaces (see the size and format of custom FMC in the Additional Images’ tab). This makes the hardware particularly suitable for high-end test and measurement applications with custom FMCs which we can help design.

If no FMC daughter card is used then the solution will occupy only one slot and when an FMC is added then it will become a 2 slot solution. The hardware has the external power connector and can be used as an embedded solution without needing a host.



Summary of devices and available resources:

Features

  • x1 HPC FMC expansion site with 10 GTH at 16.3Gb/s transceivers and 56 LVDS IO pairs
  • Can use extra large FMC modules for custom application
  • Zynq Ultrascale+ MPSoC FPGA in C1156 package (XCZU7EV / XCZU7EG/ XCZU11EG / XCZU7CG)
  • 4GB of DDR4 to PL
  • Flash memory for user application bitstream
  • Micro SD card for running OS and embedded applications (attached to PS part).
  • JTAG connector
  • System monitoring
  • x8 lanes PCIe Gen4
  • Video Codec H.265/H.264 with XCZU7EV
  • GTH, GTY, 100EMAC and Interlaken, when fitted with XCZU11EG
  • for the ARM processors within the Zync following interfaces are available:
    • Display port
    • 2x SATA
    • 1x CAN
    • Up to 8 GB of SDRAM to PS
    • 1 x USB3
    • 2 x USB2
    • 2 x SATA
    • 1 x RJ45

Applications

  • Defence
  • Medical Imaging
  • Machine Vision
  • Stereo vision
  • Artificial Reality /Augmented Reality
  • Control
  • Instrumentation and testing
  • Software Defined Radio
  • Data capture and logging



Additionally, depending on the device fitted (CG, EG or EV) to the PXIe800Z, different set of applications cane be better suited for the board as shown below. Different form factors of this design, based on PCIe and PCIe104, are also available which can be preferable for an application.

CG EG EV
•  Sensor Processing & Fusion
•  Motor Control
•  Low-cost Ultrasound
•  Traffic Engineering		 •  Flight Navigation
•  Missile & Munitions
•  Military Construction
•  Secure Solutions
•  Networking
•  Cloud Computing Security
•  Data Center
•  Machine Vision
•  Medical Endoscopy		 •  Situational Awareness
•  Surveillance/Reconnaissance
•  Smart Vision
•  Image Manipulation
•  Graphic Overlay
•  Human Machine Interface
•  Automotive ADAS
•  Video Processing
•  Interactive Display

Block Diagram

Exploded View

1 PXIe800Z board 1
2 PXIe800Z-FMC board 1
3 PXI800Z interposer board 1
4 Front panel 3U 4HP 1
5 Heatsink 1
6 Thermal Pad thickness 1mm 1
7 FAN 45x45x10mm Evercool EC4510M12S-X 1
8 FAN 40x40x6mm Orion OD4006-12HSS 1
9 Nut DIN 439 M3 3
10 Screw DIN 7985 – M2 x 4 4
11 Screw DIN 7985 – M2.5 x 5 16
12 Screw DIN 7985 – M2.5 x 10 4
13 Screw DIN 7985 – M2.5 x 12 1
14 Screw DIN 7985 – M3 x 12 3
15 Post 10 M2.5 2
16 Post 11.1 M2.5 1
17 Post 13,1 M2.5 3
18 Post 18.6 M2.5 1
19 Washer DIN 7980 M3 3
