Description

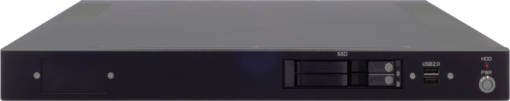

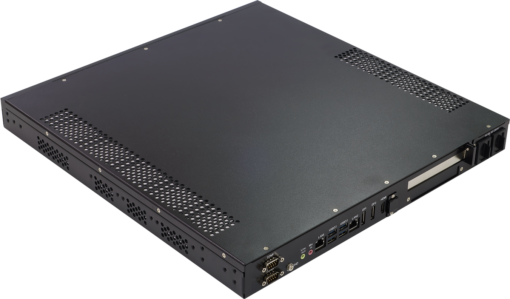

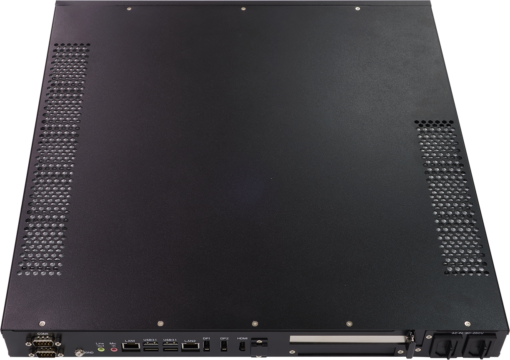

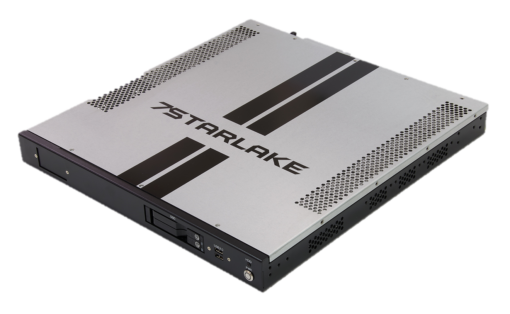

ROC286BB is an industrial 19” 1U Rack-mount rugged fanless server. Based on Intel® Coffeelake 14nm Core™ Q370 Chipset, ROC286BB can be processed by 8th/9th Processor(up to 65W). It supports up to 64GB of memory capacity, 1 x PCIe x16 Slot,1 x M.2(Key M, PCIe x4 and SATA3) Expansion Slot,4 x USB3.1, 2x DisplayPort, 1 xHDMI, 2 x LAN, 1 x Line-out/Mic ,2 x 2.5” SATA HDD/ SSD Easy Swap Tray,2 x 200W AC-DC Power Supply with Redundant support,Wide range 100~240V AC-in.
With further advantages, for example, HDD/ SSD easy swap tray and multi-expansion slot, we believe that ROC286BB is a best choice for those, who are looking for an ideal server to meet the requirements of commercial and industrial platforms, process control, intelligent automation and manufacturing applications.
Thermal Solution
Dual side thermal solution, fanless design for 1U slim size
With combination of high CPU computing power and graphic GPU performance generate numerous heat, 7STARLAKE emphasizes on providing exceeding thermal design guarantee system offers superior performance under critical environment. Based on our experience, ROC286 adopts dual side thermal solution, with copper heat spreader directly touches the heat source components processor and graphic GPU to absorb the heat rapidly, the heat then transfer to heat pipe; heat pipe is two-phase heat transfer involves the liquid-vapor phase change of a working fluid which can provide high efficiency heat transmission, the aluminum heat sink dissipates the heat into surrounding air promptly. Both side thermal solution is mainly for processor. With unique thermal design, 7STARLAKE is capable to integrate high power consumption CPU into 1U such slim size fanless system.
