Description

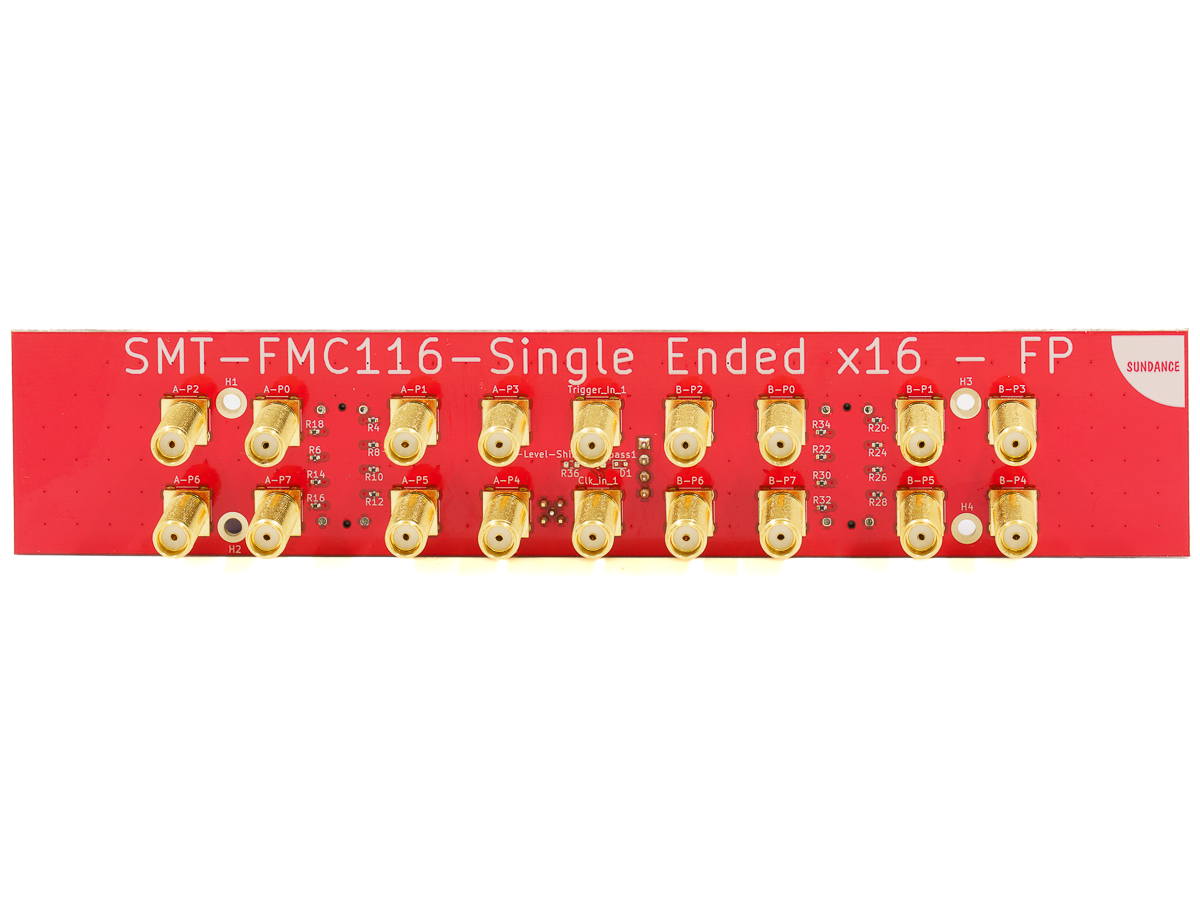

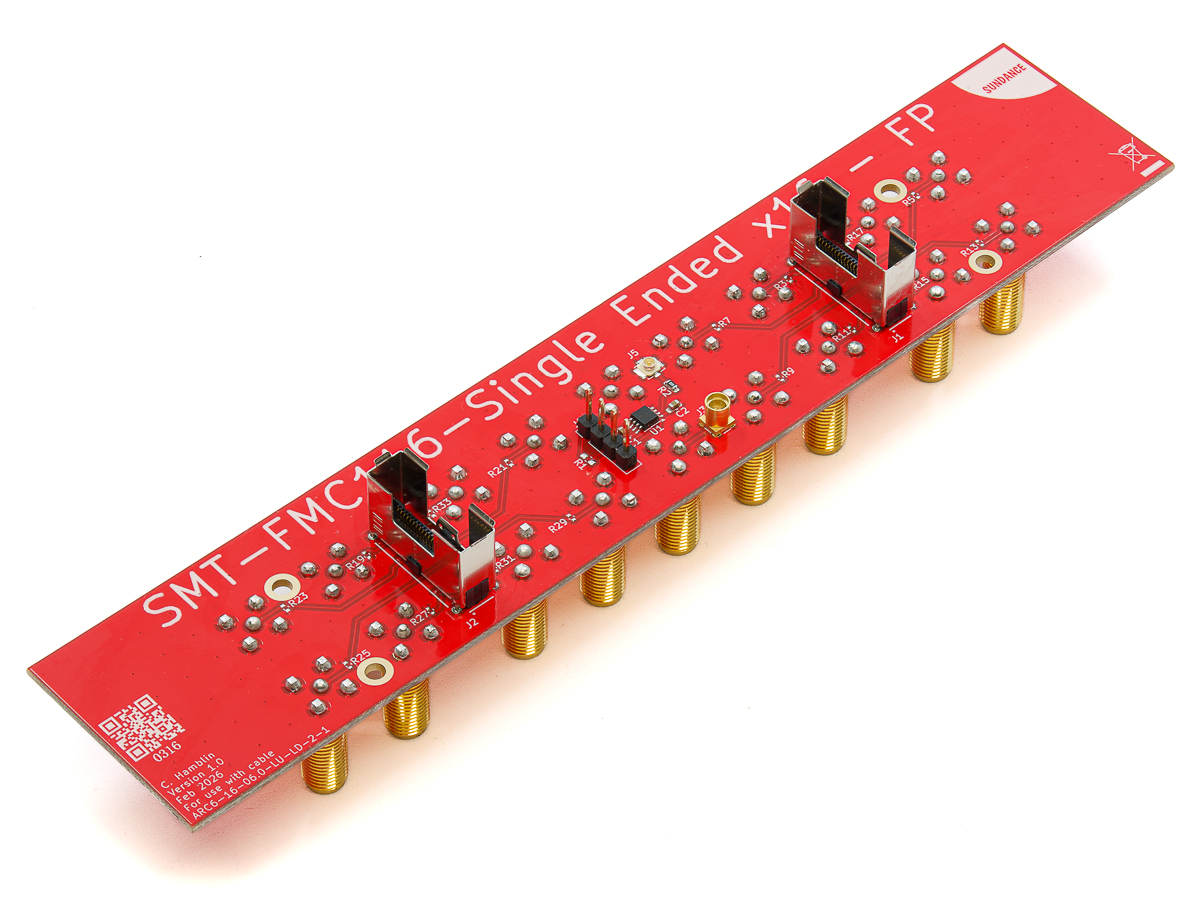

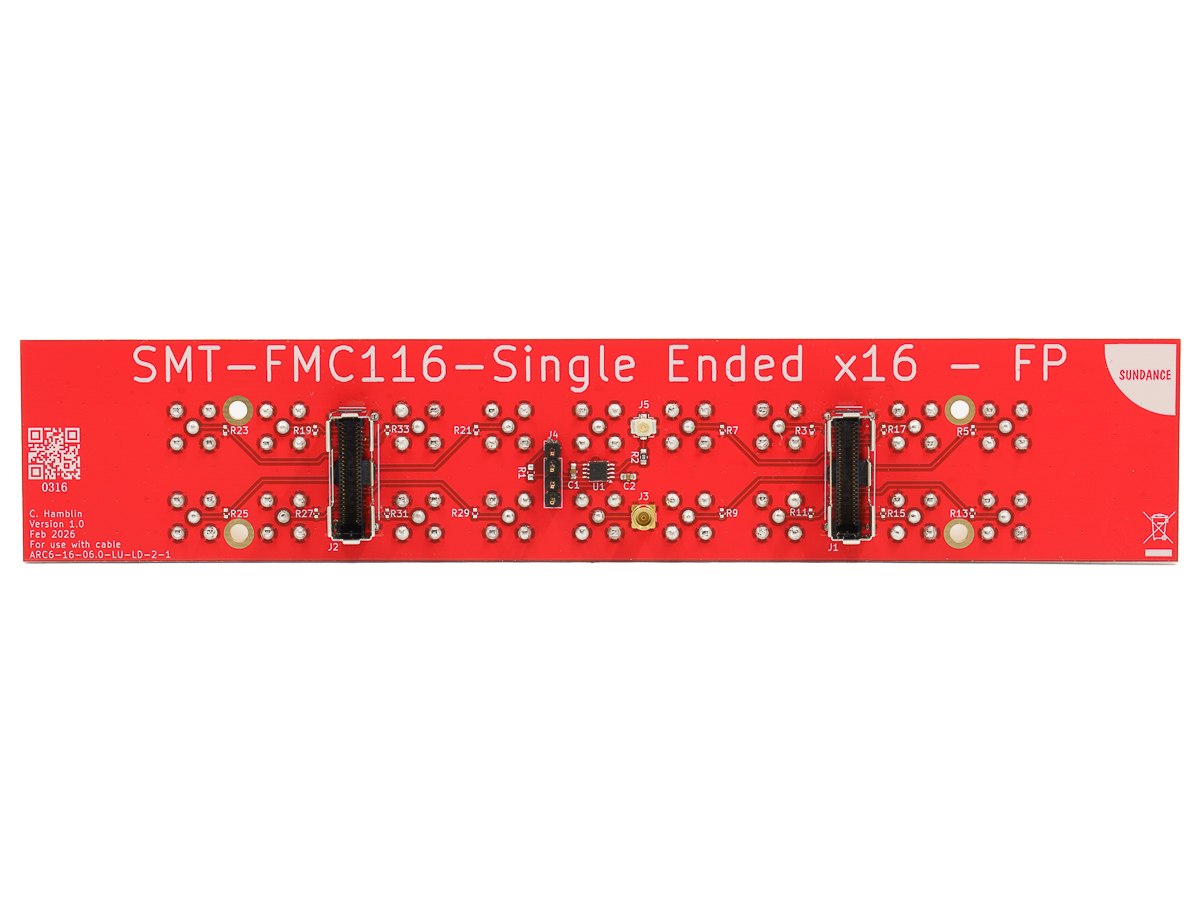

The SMT-FMC116-Single Ended x16 – FP has a pair of Samtec SAMTEC_ARF6-16-S-RA connectors for linking the SMA connectors on board to the SMT-FMC116.

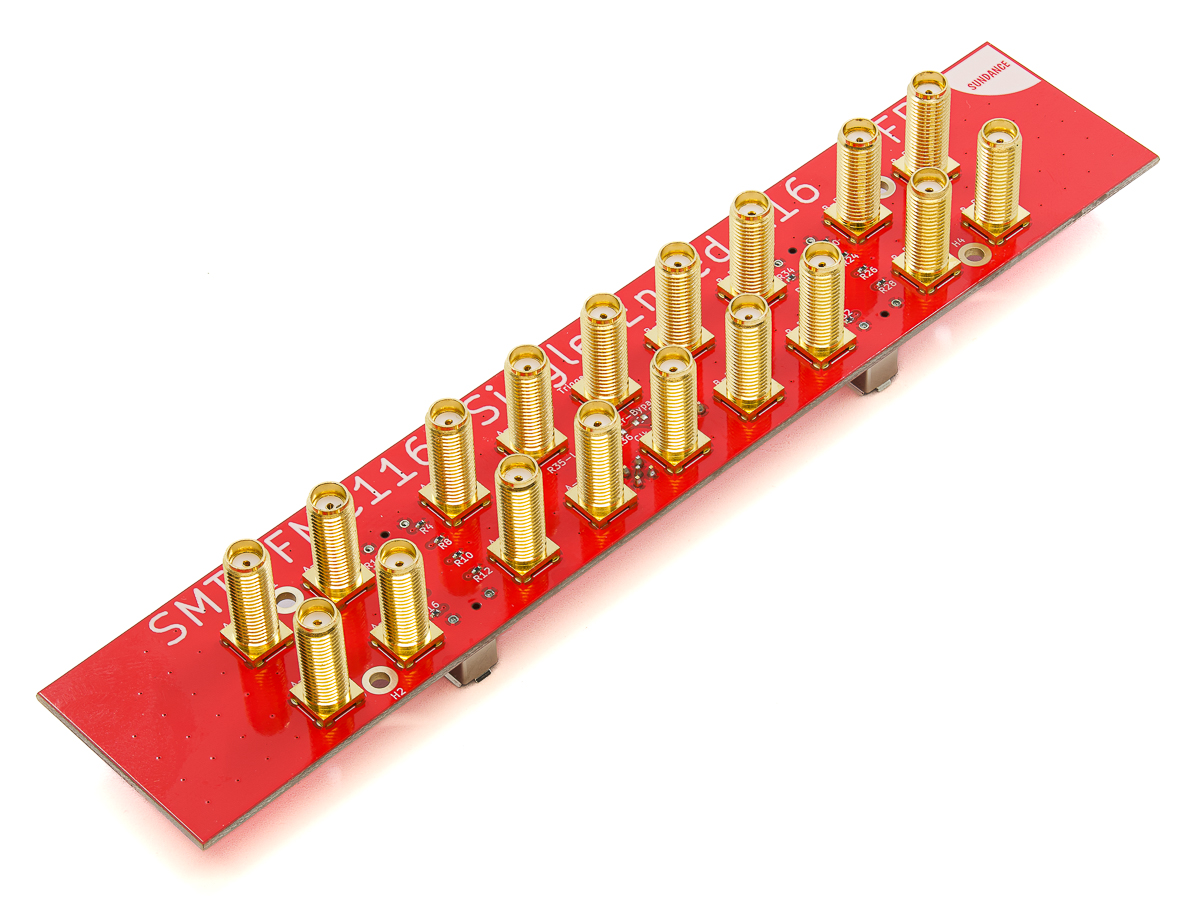

Each of the 16 channels has an SMA on the P channel with the N channel shorted to ground via a 0R resistor.
There is also an SMA connector for the external clock that is linked to an MMCX connector for easy conversion, and another for the External trigger that is linked to a U.FL socket.
By default, the External trigger is connected through a level translator, which is powered via 0.1” header. If required, this can be bypassed.
