Description

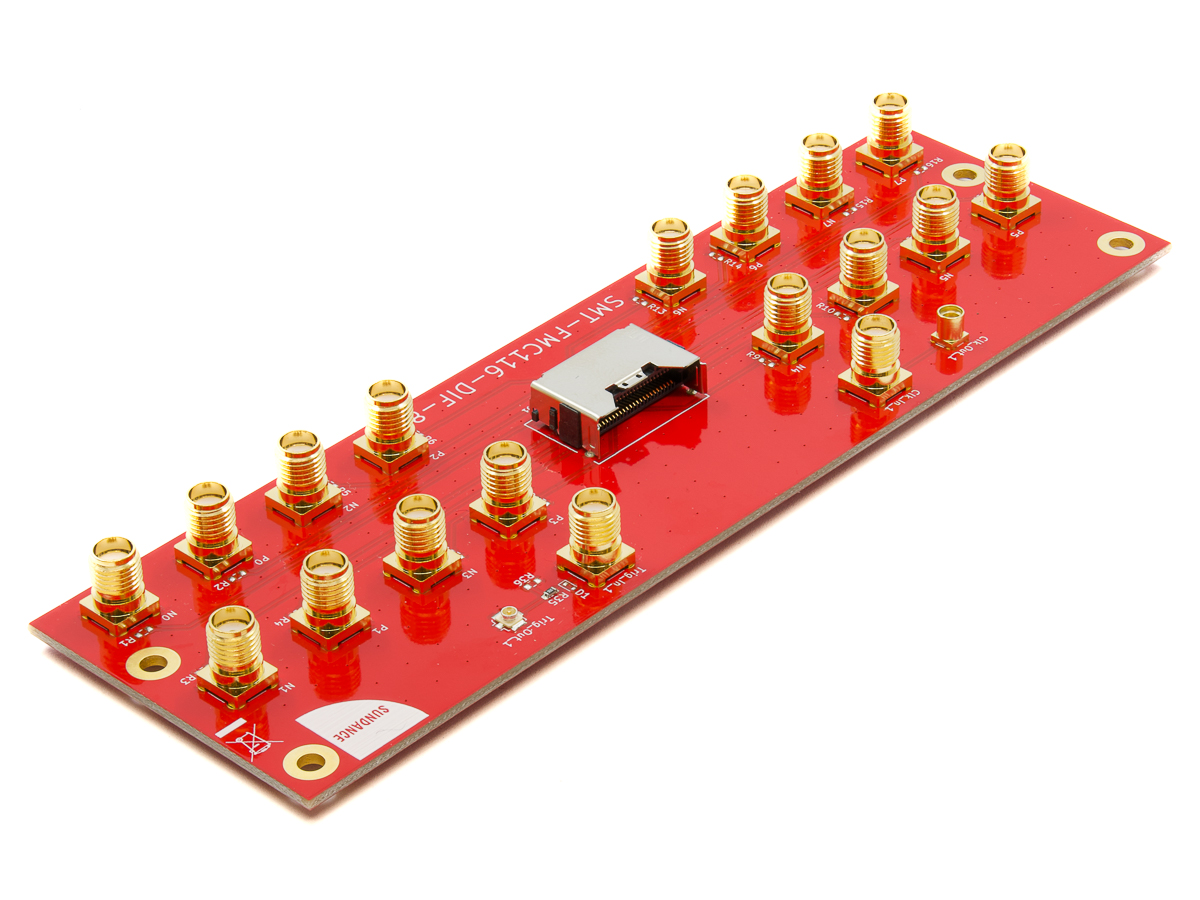

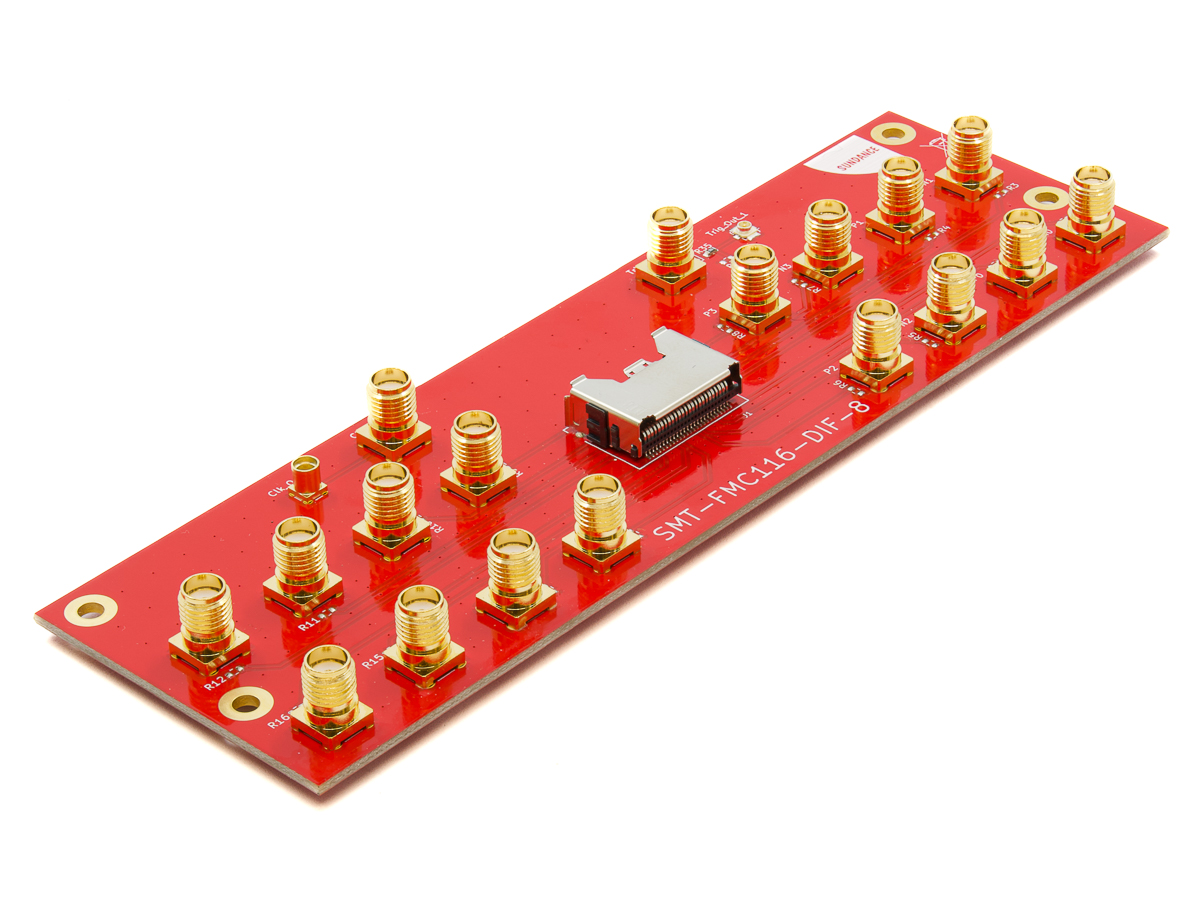

The SMT-FMC116-SMA-8-DIF has a single Samtec SAMTEC_ARF6-16-S-RA connector for linking the SMA connectors on board to the SMT-FMC116.

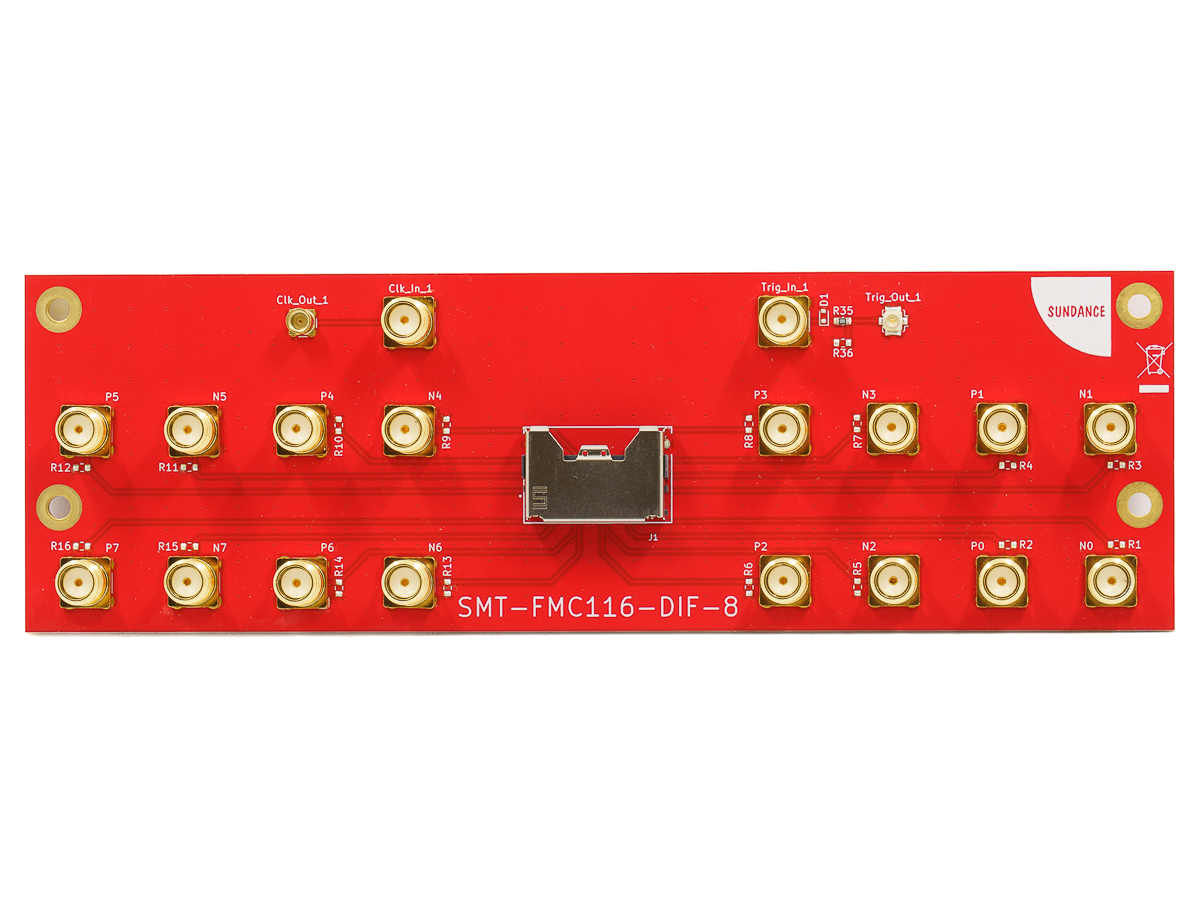

Each of the 8 channels has a P and N SMA connector for full flexibility. There is also an SMA connector for the external clock that is linked to an MMCX connector for easy conversion, and another for the External trigger that is linked to a U.FL socket.
The External trigger has the possibility of using a voltage divider and an ESD diode to reduce the amplitude of the signal supplied to the SMT-FMC116.
