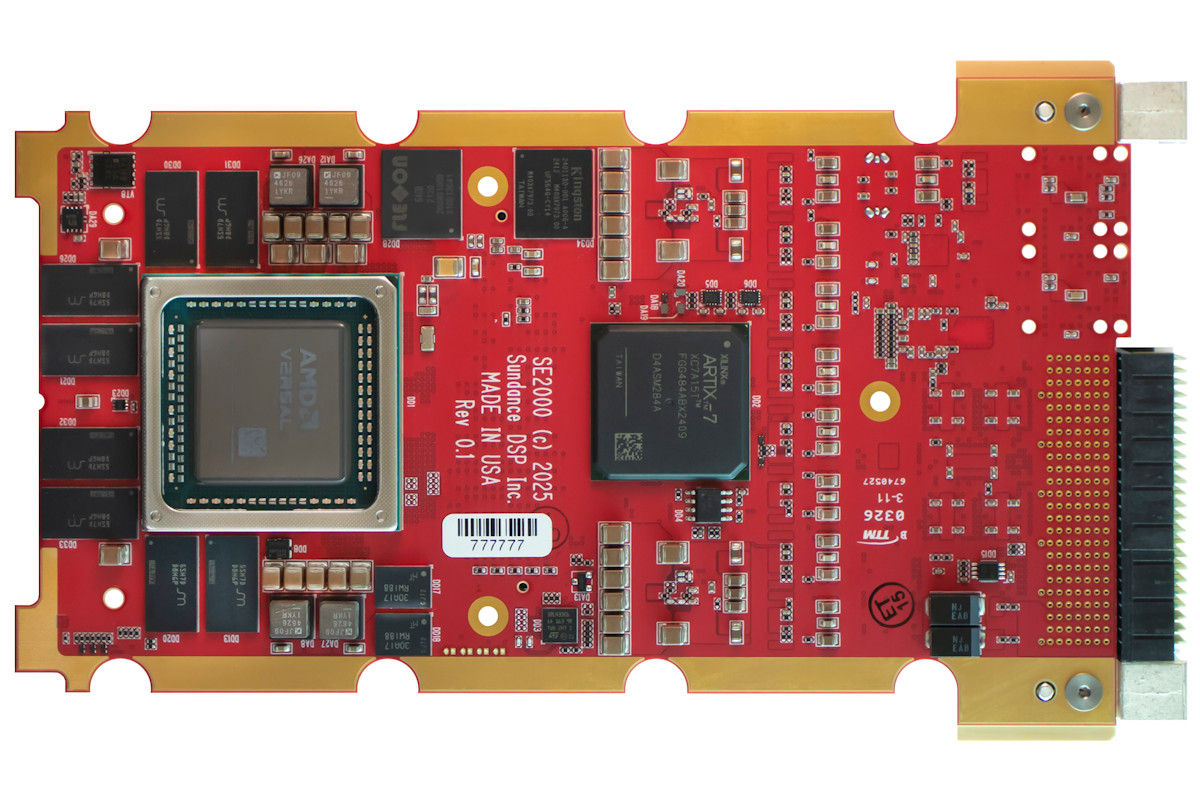

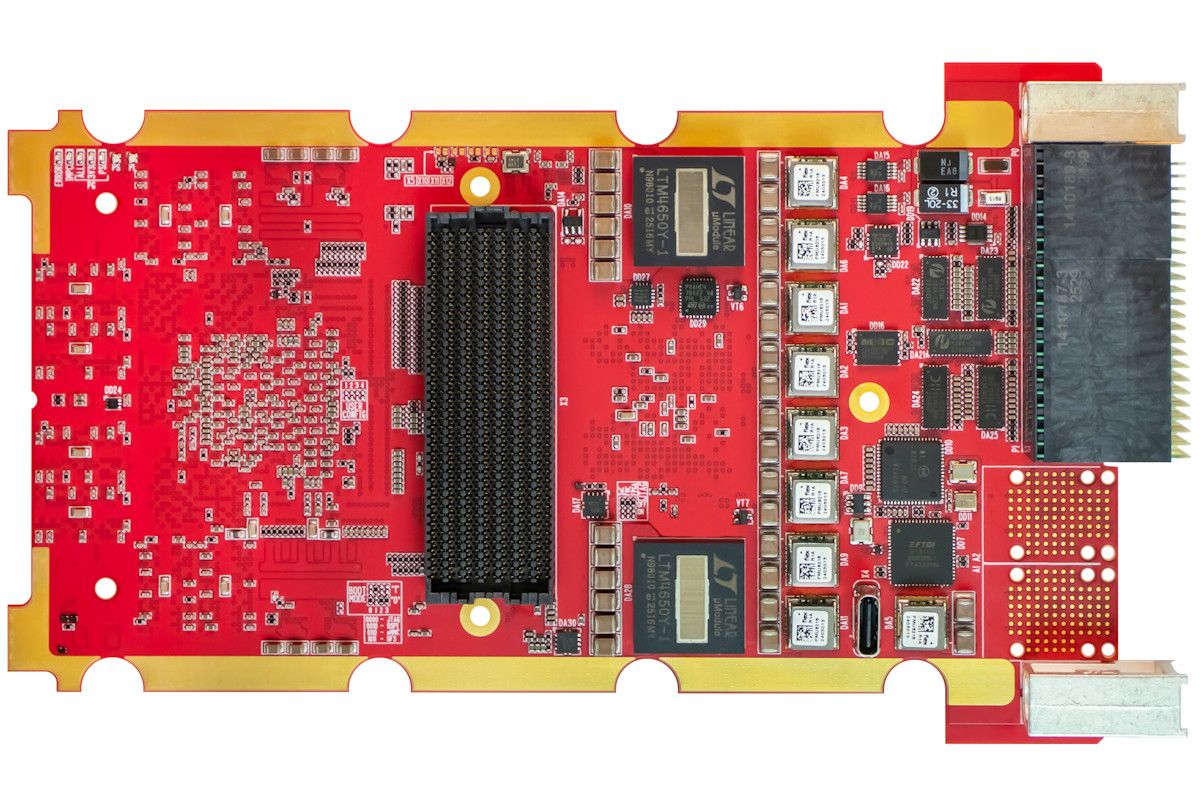

Solar Express 2000 (SE2000) VPX

Features

• Board form factor and Profile, SOSA compatible: MOD3-PAY-1F1U1S1S1U1U2F1H-16.6.11-x
• SOSA slot profile SLT3-PAY-1F1U1S1S1U1U2F1H-14.6.11-6 (other “dash” options are supported — contact Sundance support for more information)
• IPMC: STM32L433RCI6 microcontroller
• Main payload devices available as ordering options:
  • SSVA2112 package, Versal AI Edge Gen2 2VE3504, 2VE3558, 2VE3804, 2VE3858, Versal Prime Gen2 2VM3558, 2VM3858
• GTYP, GTM resource allocation:
  • GTYP(PL) – 12 (Max 20), GTYP(PS) – 4, X5IO – 384 (Max 512) (SSVA2112 package)
• 16 GB eMMC for PS image and data storage (can populate up to 256 GB)
• Two 1 GB QSPI flash for PS image and data storage
• TA101 Secure authentication IC connected to PS for secure boot and encryption capabilities
• TPM 2.0 for storage of encryption keys for the PS, ST33HTPH2X32AHE4
• Si5341 Clocking IC (10 outputs, low jitter)—provides fabric clocks and transceiver clocks
• FT4232 USB-to-UART: provides 3 UART channels (payload PS, payload PL, IPMC) and JTAG (including FMC+) via USB Type-C connector
• DIP switches for JTAG bypass, boot-mode selection, and user purposes
• Two RGB LEDs (one connected to PS, one to PL)
• IPMC SWD JTAG routed to the OpenVPX connector
• Combined MicroSD/UFS card connector—boot capable (microSD supports only 3.3 V modes)
• Maintenance ports routed to IPMC and to Payload PS UART
• Redrivers on Data, Control, Expansion plane signals:
  • PI3EQX16904GLZHEX (Expansion plane), PI3EQX1204-CZHEX (other planes)
• Optical module with 12 Tx and 12 Rx lanes (to build 3×100 Gb Ethernet ports)
• There is constant GTYP routing not controlled by assembly option, not subject to change:
  • PS GTY_Q_105 — routed to Expansion Plane EP00–EP03 (PCIe only)
  • 4× PL GTYPs[00:03] — routed to Data plane 1
• There are stuff resistors for different assembly options, routing GTYPs to different interfaces:
  • For devices with 12 GTYPs:
    • 4× GTYPs[04:07] — FMC+ DP[00:03] or Optical
    • 2× GTYPs[08:09] — FMC+ DP[04:05] or Optical
    • GTYP[10] — FMC+ DP[06], Optical, or DPutp01
    • GTYP[11] — FMC+ DP[07], Optical, or CPutp01
  • For devices with 20 GTYPs:
    • 4× GTYPs[08:11] — FMC+ DP[04:07] or Optical
    • 4× GTYPs[12:15] — FMC+ DP[08:11] or Optical
    • GTYP[16:17] — FMC+ DP[12:13]
    • GTYP[18] — DPutp01
    • GTYP[19] — CPutp01
• Voltage & current sensing IC for the 12 V rail only, connected to IPMC and Payload via SMBus (other rails provide PG signal only)
• Temperature sensing IC connected to IPMC via I²C
• Onboard power control per OpenVPX specification, via IPMC
• Requires chassis 12 V supply and 3.3 V AUX supplies

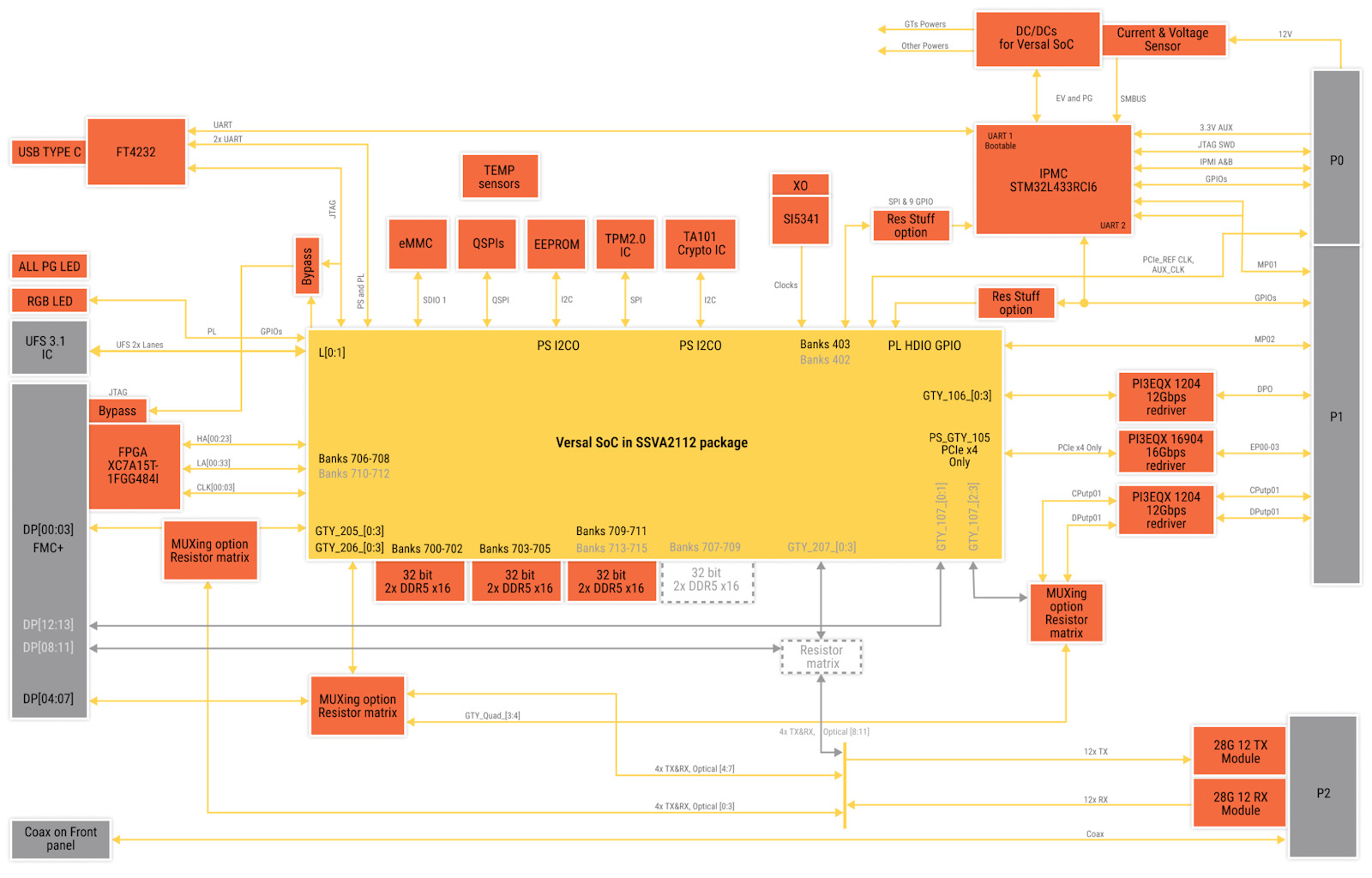

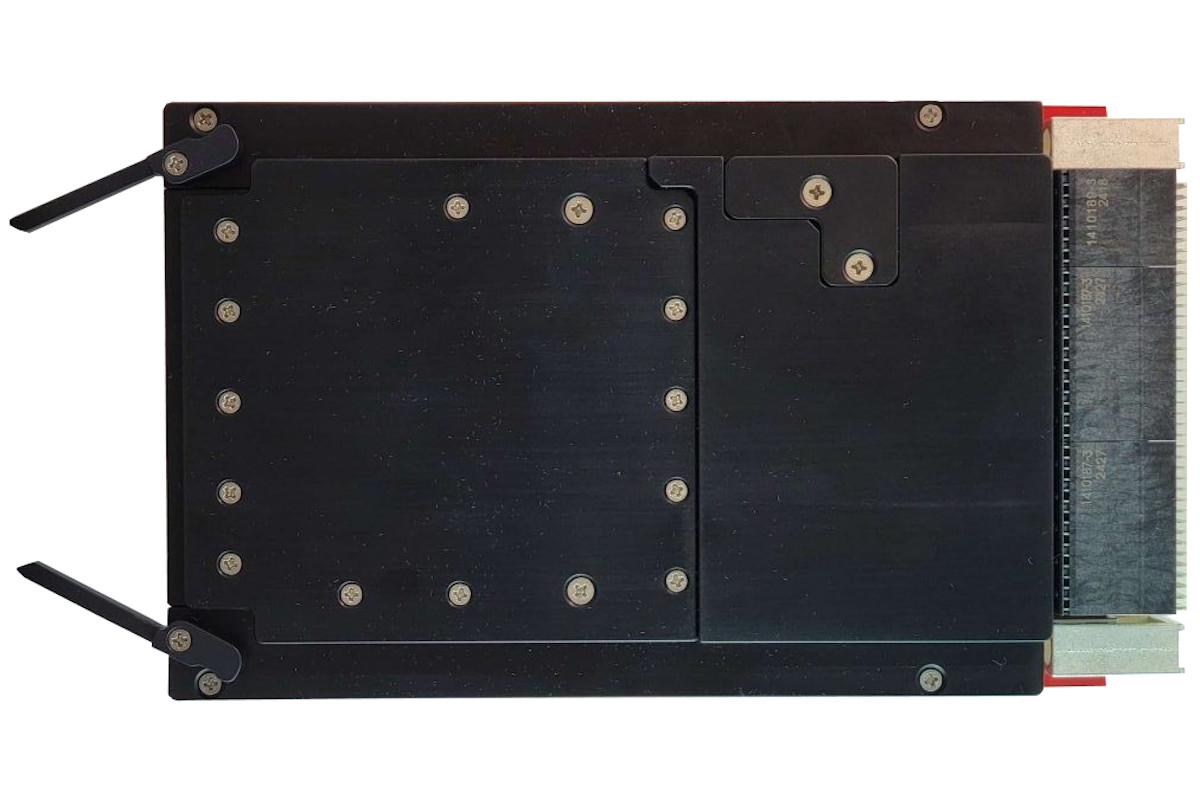

• Enclosure compliance: VITA 48.2 conduction cooling and VITA 48.8 air cooling
• IPMC features:
  • NVMRO signal processing
  • IPMA, IMPB ports routed
  • PMBus access with power & temperature sensors
  • SWD JTAG routed from OpenVPX connector to IPMC
  • Maintenance port from OpenVPX connector to IPMC
  • GDiscrete1, GPIO1, MASK_RESET#, VPX_SYSCON#, GA[0:4], GAP routed to IPMC
  • Early 3.3 V AUX warning
  • Payload power control
  • Internal PG signals
• IPMC to Payload connections & features (air-gappable):
  • 1 SPI interface
  • 9 GPIOs and 1 RESET#
• OpenVPX signals (GDiscrete1, SYS_CON#, GPIO1, MASK_RESET#) can route directly to Payload via resistor stuff option
• XC7A15T-1FGG484I FPGA for FMC LA/HA lanes level translation
• FMC+ VADJ voltage support: 1.8 V, 2.5 V, 3.3 V
• Maximum power draw: 200 W (TBD) from 12 V rail
