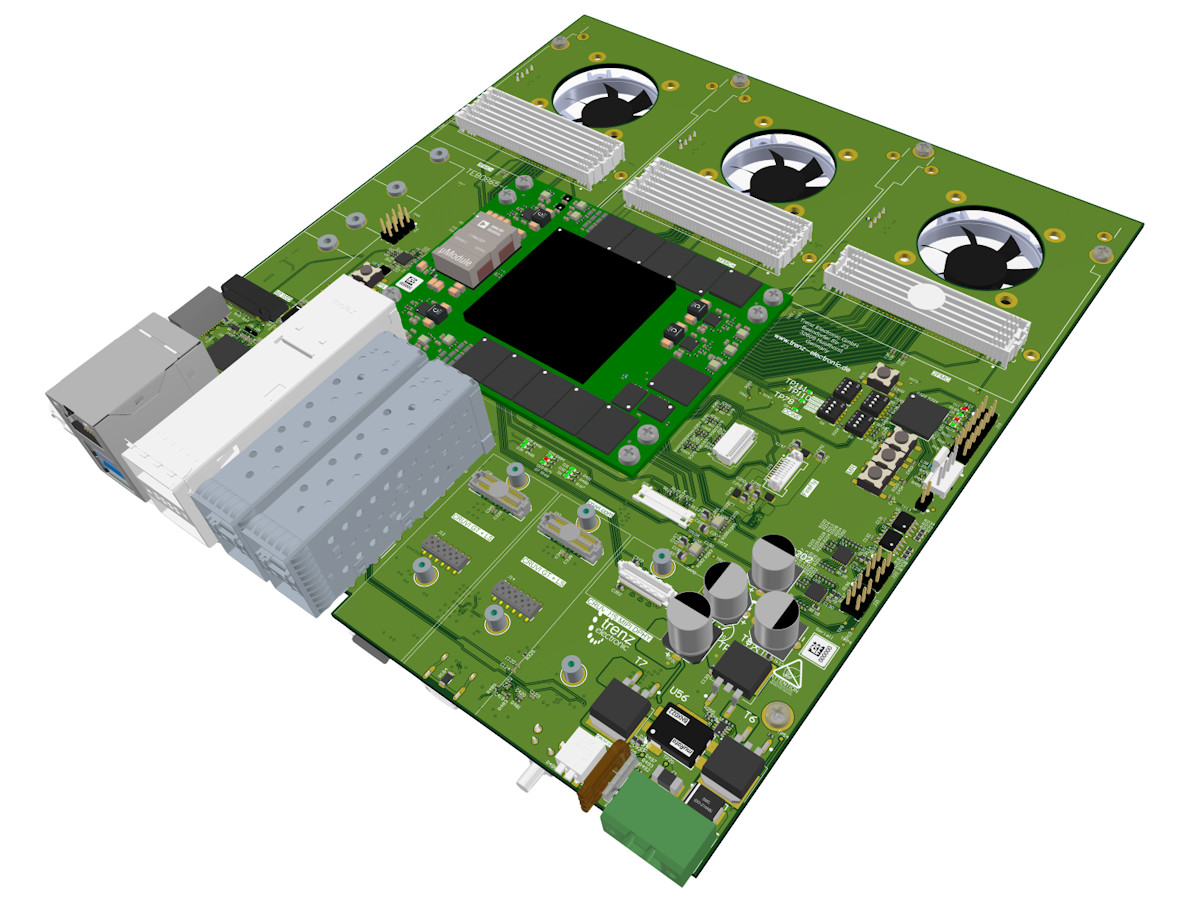

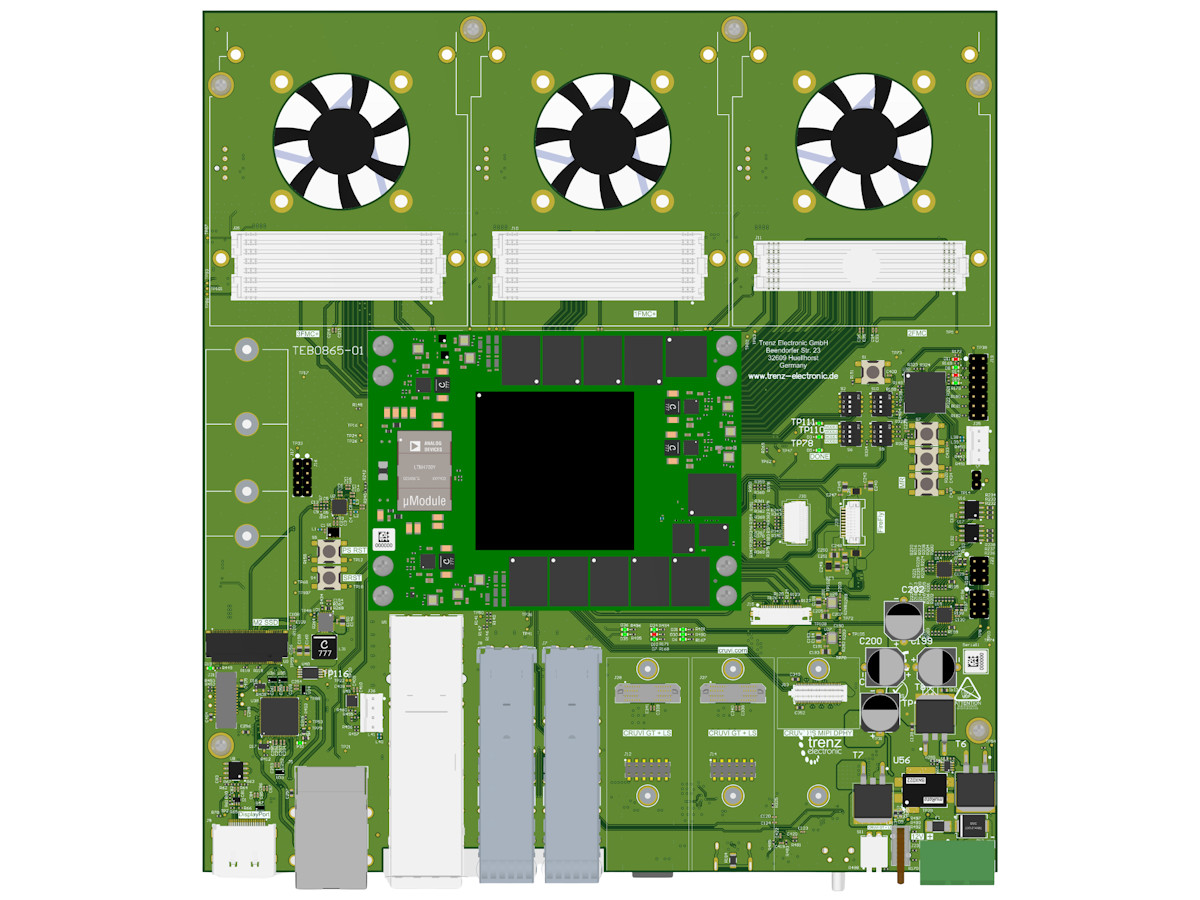

Description
Key Features
Supported SoM
- Trenz Electronic high-performance MPSoC module TE0865 with an AMD Zynq™ UltraScale+™
B2B Connectors
- 4x B2B Samtec ADF6-60-03.5-L-4-2-FR
IO resources:
- 1x stacked zQSFP+ (2x zQSFP+)
- 2x stacked SFP+ (4x SFP+)
- Display Port TX 2 Lanes
- 1x RJ45 stacked with 2x USB3.0 Type A
- 1x Push-Push microSD
- 2x FMC+ (16x DP + 18x LA)
- 1x FMC (8x DP + 34x LA)
- M.2 SSD Socket Connector Key M PCIe
- 2x LS CRUVI
- 1x HS CRUVI
- 2x GT CRUVI
- MIPI CSI-2 4 Lanes (22 pins connector)
- JTAG via USB Type C (FTDI FT2232H)
- 1x Samtec FireFly (4 Lanes)
- 1x USB Type E (Assembly option)
Clock source:
- 2x PLL SI5338A-B-GMR
ON-Board peripherals
- 1x 128K EEPROM 24LC128-I/ST
- 2x 8K EEPROM M93C66-RMC6TG
- 2x 512K EEPROM CAT24C512WI-GT3
- 5x DIP Switches
- 7x Push Buttons
- 27x Green LEDs + 4x Red LEDs
System controller:
- Altera MAX 10 FPGA 10M08SAU169I7G
Dimension
- 231 x 213 mm
Power
- 12V Input Supply Voltage
