Description

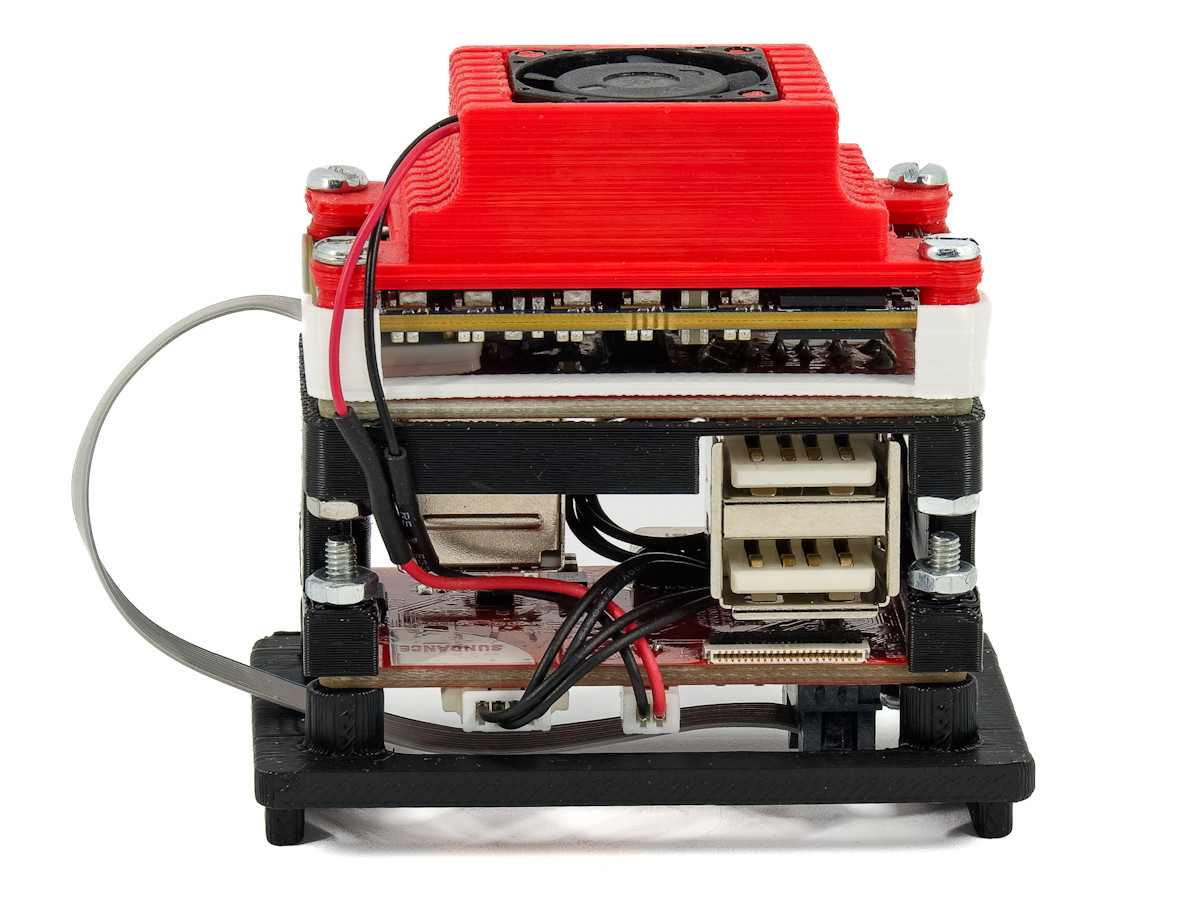

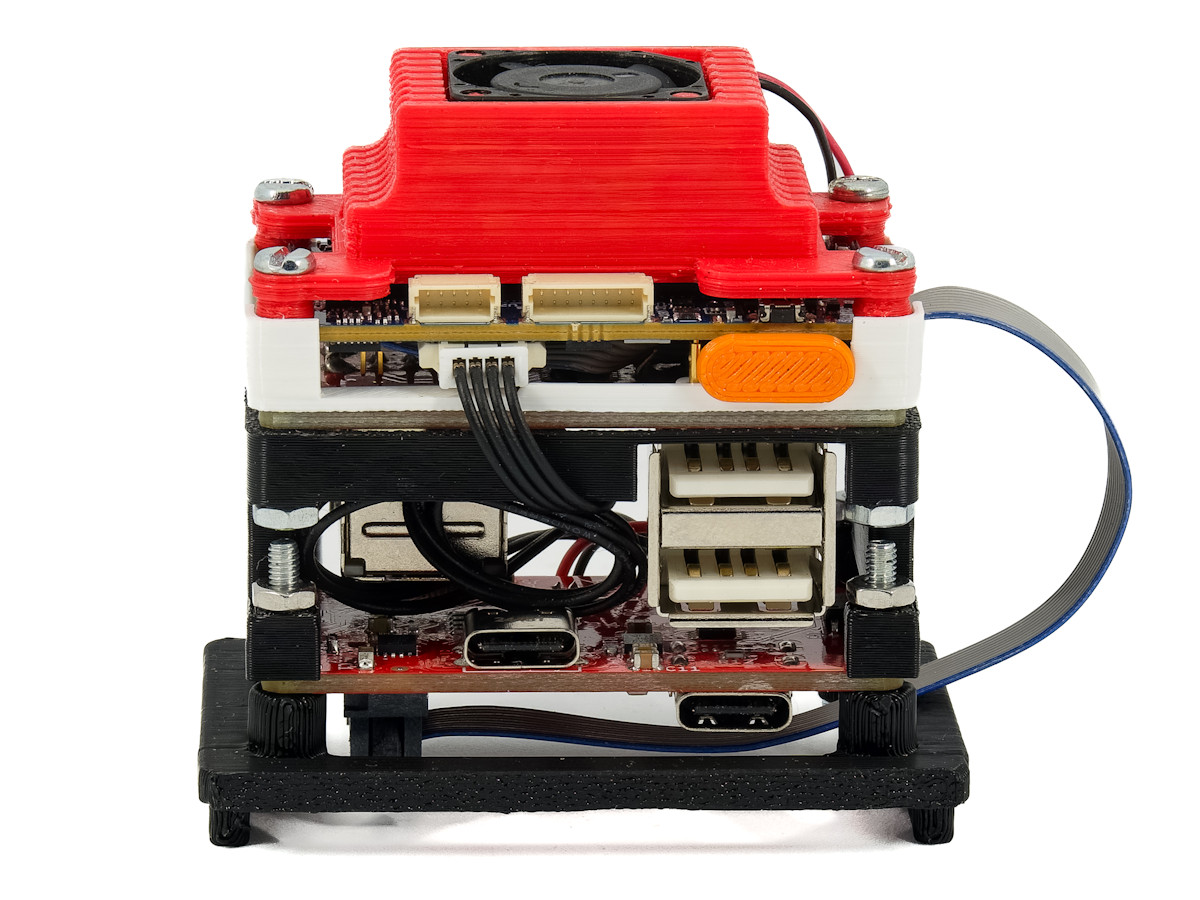

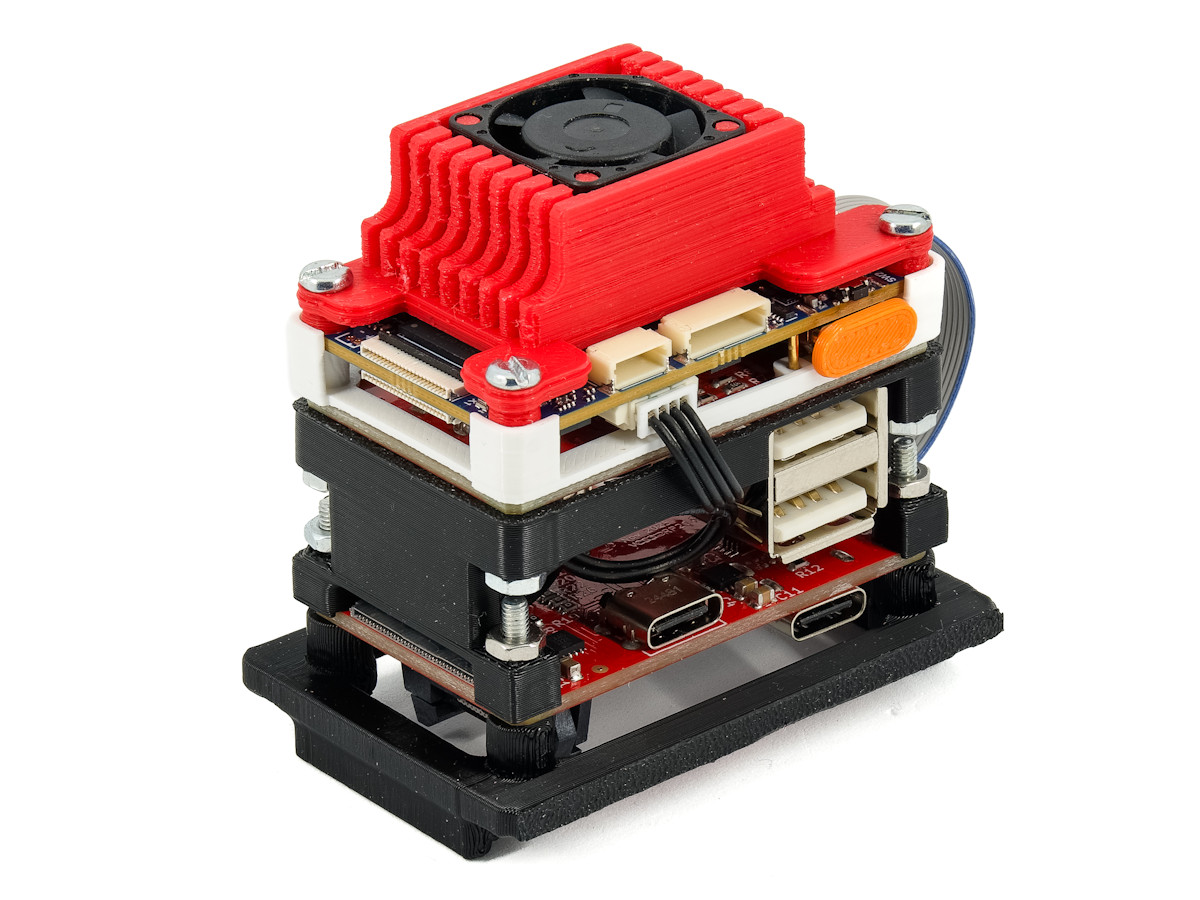

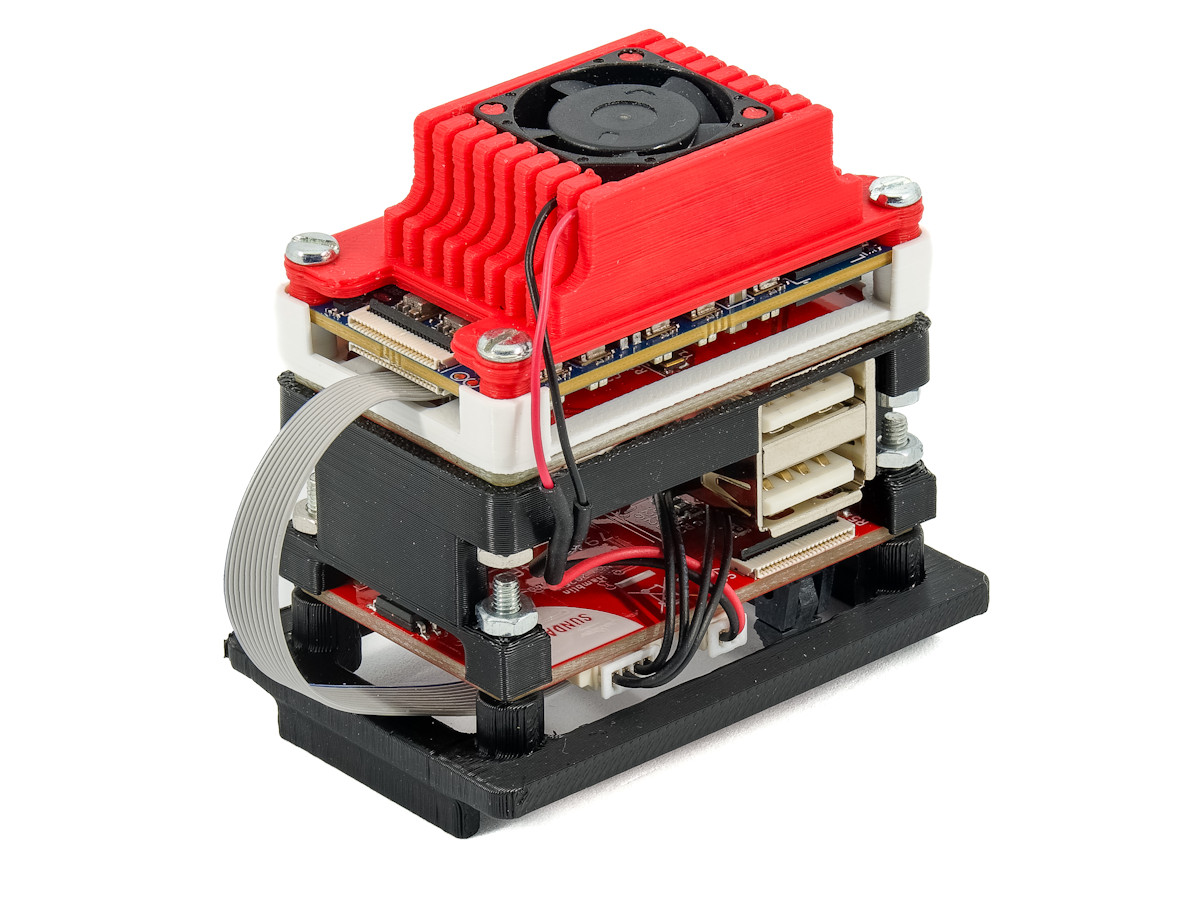

The VCS³ Stack integrates all the components of a SoC-powered SBC into a single, lightweight, compact footprint.

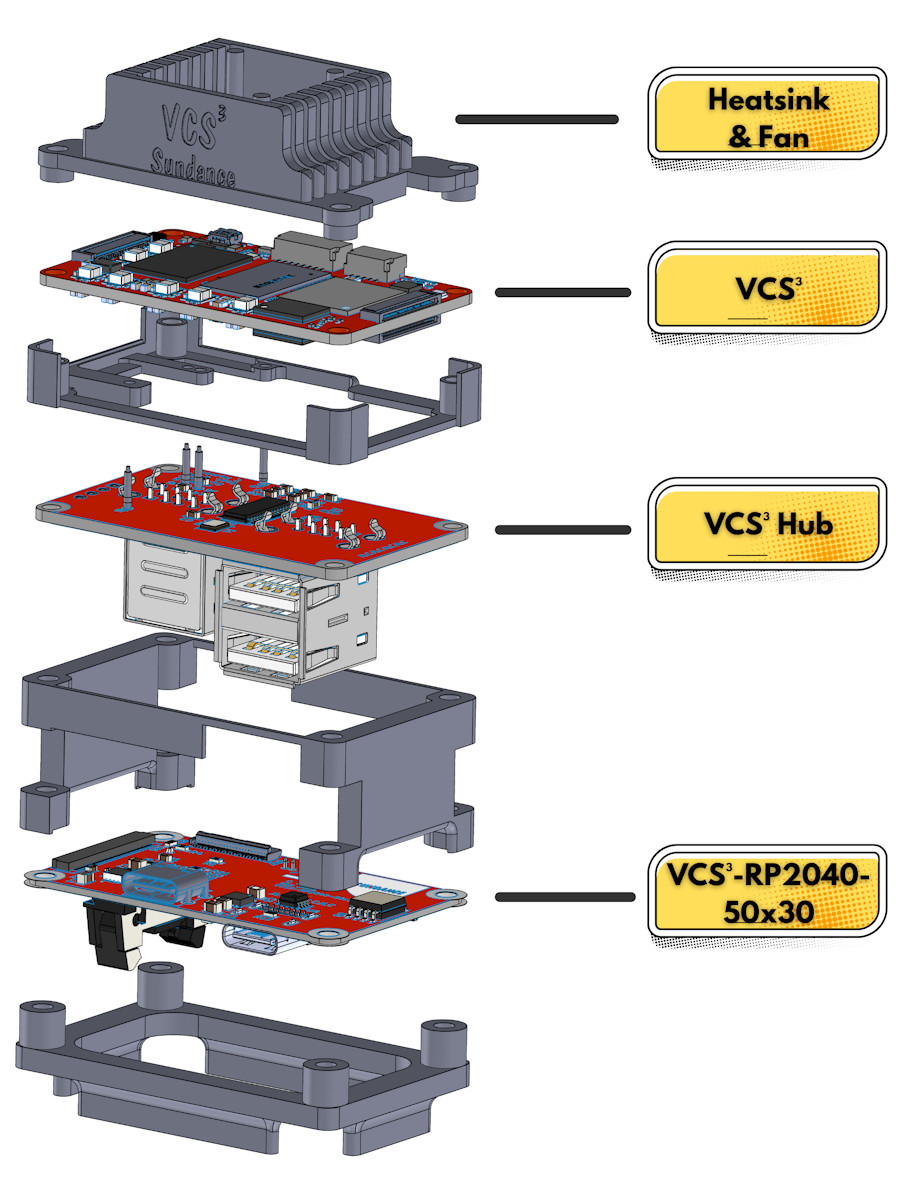

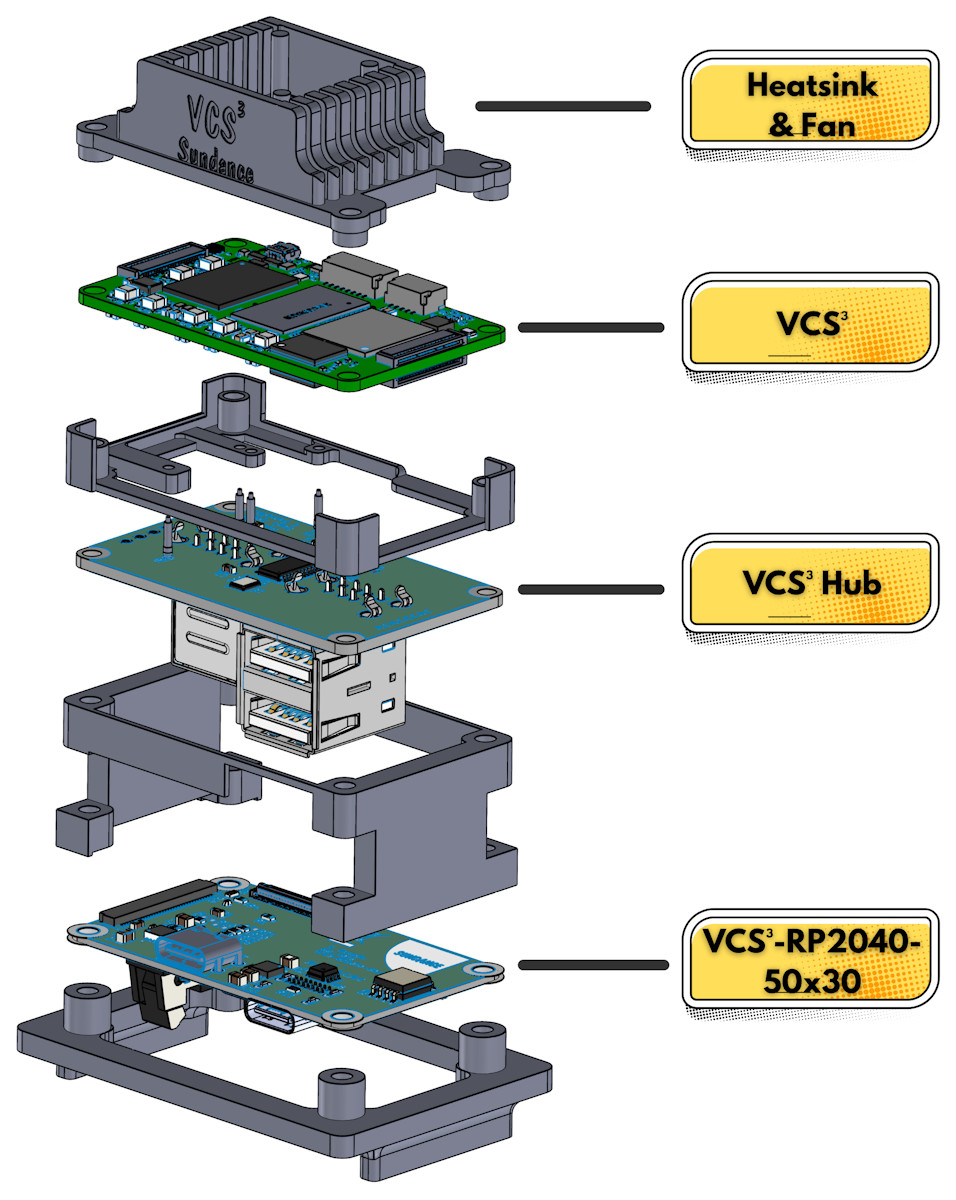

From top to bottom, the stack includes:
VCS³ Module
Located just below the cooling fan, this is the system’s brain, offering extensive I/O for diverse data processing applications.
4-Port USB 2.0 Hub
Controlled by an FE1.1s chip, this hub connects directly to the VCS3 using gold pads and spring-loaded POGO pins. This hardware design ensures stable power, ground, and data (D+/D-) connections even in high-vibration environments. Five built-in LEDs indicate the status of each connected device. Because this hub taps directly into the VCS³’s USB 2.0 lines, the onboard USB-C port is unavailable for power or data.
VCS3-RP2040 Card (50×30 mm)
Situated at the base, this board supplies USB-C power to both the VCS³ module and the fan. A separate USB-C port handles UART and XVC JTAG communications. It also hosts a 22-pin MIPI to 34-pin DSI display converter, designed for use with the VCS³-3D kit.
