Description

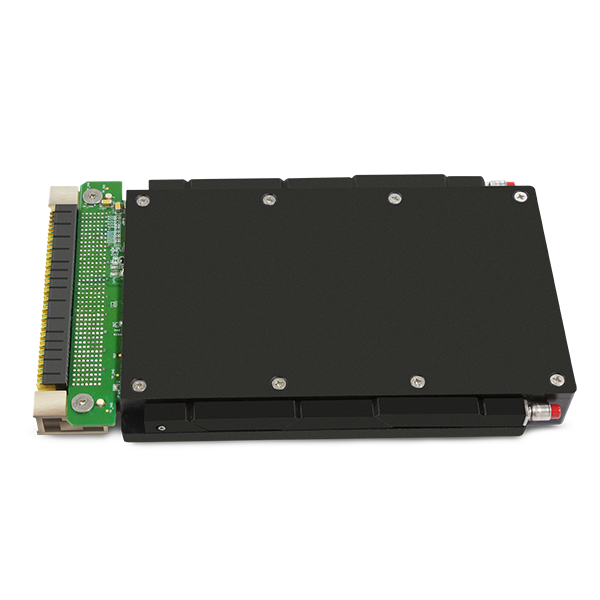

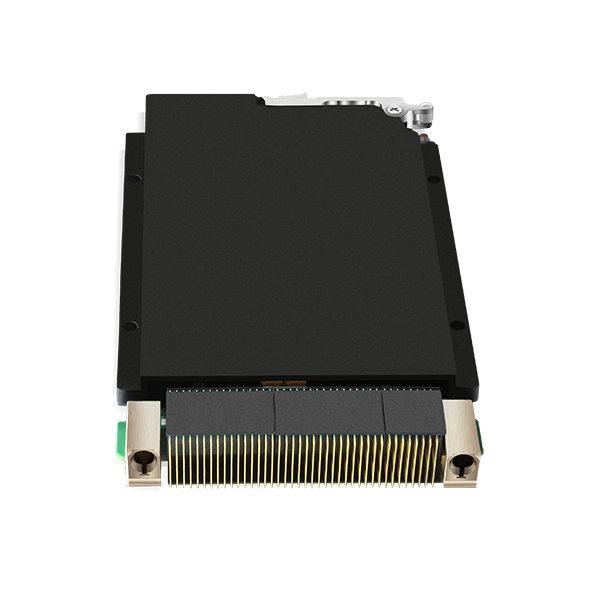

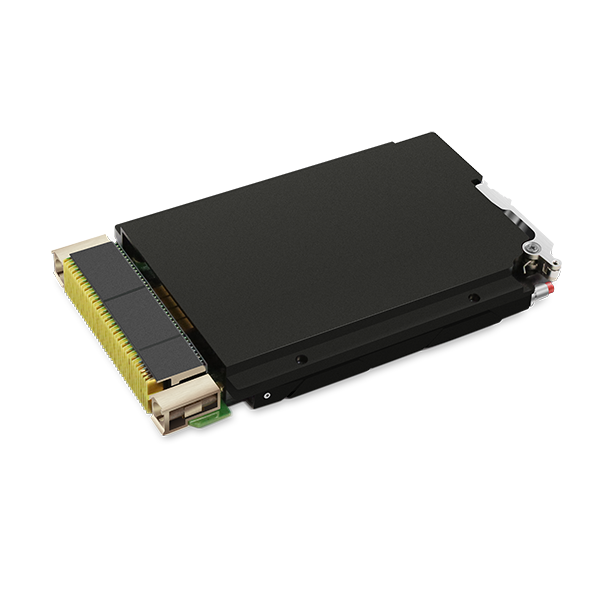

Renice 8TB 3U VPX Storage Module is a storage solution based on SATA III interface, mainly composed of VPX connector, SSD controller, and flash memory array. Deliveries over 450MB/s sequential read/write performance and extendable to maximum 10TB capacity. Features stable performance, reliability and power failure protection. Renice 3U VPX Storage Module is an ideal solution for various applications in industrial field, including network storage servers, data centres, and video recording that need a large amount of data input and output equipment.
| Basic Information | |
| Host Interface | SATAIII 6.0Gbps |
| Dimension | 3U (170.6mmX100.0mmX20.83mm) L×W×H |
| Max Capacity | 8TB（Up to10TB） |
| Operating Voltage | 12V |
| Flash Memory Management | |
| Flash Management Algorithm | Static and Dynamic Wear-leveling technology, Bad Block management algorithm |
| SMART (Self-Monitoring, Analysis and Reporting Technology) | √ |
| BCH ECC | 120bits /1KBytes |
| Other Functions | |
| Built-in Power Protection Monitoring, Over-voltage Protection | √ |
| AES 128bit/256bit Encryption | √ |
| Environment | |
| Operating Temperature | -40℃ to +85℃ |
| Storage Temperature | -50℃ to +90℃ |
| Humidity | 95% |
| Operating Vibration | 16.4 G (10Hz-2000Hz) |
| Shock | Non-operating:1500G(@0.5ms ,Half-sine wave, ±X,±Y,±Z axis, 1 time/axis); Operating:50G(@11ms ,Half-sine wave, ±X,±Y,±Z axis, 3 times/axis) |
