Description

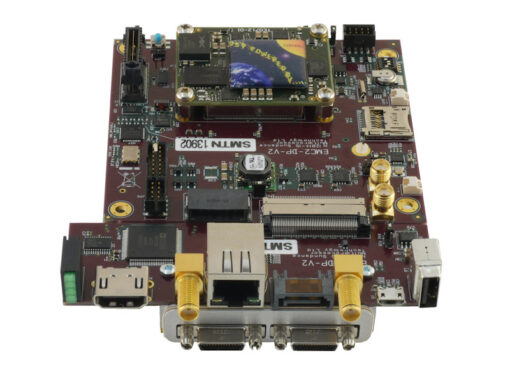

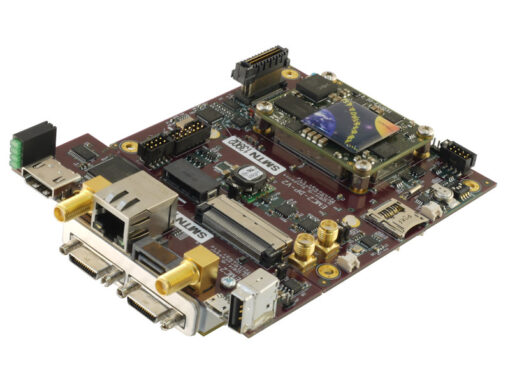

The oi110 combines a dual lane CameraLink camera interface card FMC-CL and the EMC²-DP integrated on a PC/104 form factor.

The two CameraLink interfaces will offer a dual-vision interface to a range of applications and either be controlled by a Host Controller or run in a stand-alone mode. The integrated Xilinx FPGA allows any CameraLink format to connect to oi110. The additional SATA-3 expansions allow connection to large storage for future processing.

Key points of the I/O module:

  • Dual CameraLink Ports
  • Dual Single SATA-3 Ports
  • PoCL (Power over Camera Link) support
  • Up to 85 MHz data rate
  • Dual Base, Single Medium Base
  • Single Extended Full CL Base

Key points of the carrier:

  • PCIe/104 OneBank or Type 1 or Type 2 compatible
  • PCI Express Gen 2 compatible and integrated PCI Express switch
  • An infinitive number of oi110’s can be stacked for multiple camera inputs
  • Expandable with any PCIe/104 I/O Module for more flexibility
  • It can be a “Single-Board-Computer” and run stand-alone or as part of a system
  • 96mm x 90 mm PC/104 Form-Factor with Cable-less Break-Out PCB Connector

The oi110 needs to be coupled with the FPGA module of your choice. Depending on the application you are designing for, we have a range of Xilinx Artix, Kintex and Kintex UltraScale FPGAs or Zynq SoC to suit. They are all based on the Trenz 5×4 System on Module standard for ultimate flexibility.

Block Diagram

Other Files



 EMC²DP-Starters-Guide-v3.1-QCF32

  EMC²DP-Design-Specification-QCF51-v3-4

  EMC-²-IO-v1.0_z712-15-30

EMC² STEP File
