Description

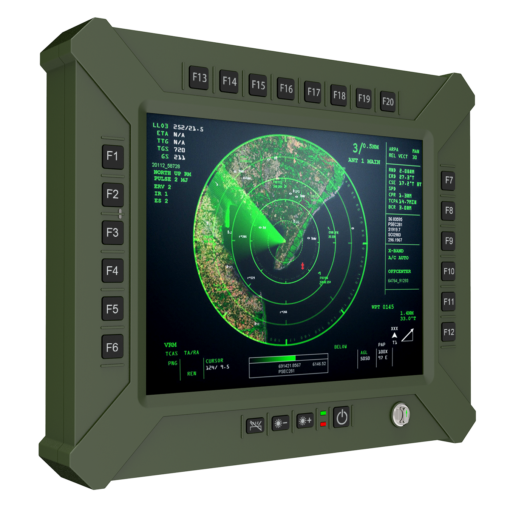

7StarLake Cloud15-P20 rugged mission-critical panel computer, retaining exceptional features of SKY15-P20, with LCD super brightness up to 1000 nits and night vision (NVIS) under 1 nits, optical bonding of protective glass (GFG) touch screens, EMI filtering / EMI mesh shielding, and anti-reflection/anti-glare (AR/AG) coatings, possess also built-in CPU module w/ Intel Xeon W-11865MLE is a 64-bit 8 cores/16 threads processor and 20 programmable function keys. The rugged panel computer is designed with IP-65 waterproof and dust proof all-aluminum housings, supporting extended operating temperature range from -40 to 60°C and flexibly support extended DC power input range from 18V to 36V.
Compact Core I-based C4ISR rugged system
Driven by Intel® Xeon W-11865MLE Processor (8C x 1.5/4.5 GHz), 24M Cache (25W) soldering onboard, with outstanding CPU and Intel(R) UHD Graphics performance, Cloud15-P20 is launched as a competitive panel computer for C4ISR application. 7STARLAKE CLOUD15 is an ideal solution for both land and naval battle. Through multi-connection with calculate computer, sensor, and control system, receiving information from image processing computer connecting with surveillance devices, Cloud15-P20 brings its superiority into full play on surveillance and critical mission assistance.
Super Brightness 1000 nits & Night Vision under 1% nits
7StarLake Cloud15-P20 ruggedized panel computer equipped dual LED backlight control systems, can support sunlight readable high bright and exceptional low nits readable. By switching the hardware key, the operator can select standard mode or night vision mode in case of misuse and damage night vision optical devices.
When system at standard mode, the operator can adjust brightness remotely by software or locally by hardware key to turn it to brighter or darker, but once the operator switch it to night vision mode, the display brightness down to default 1 % nits or other customized night vision mode immediately, the brightness adjustment key functionality locked automatically, and the display gets ready at low brightness right away once its trigger and protect the usage of night vision devices at once.
MIL-STD-810, MIL-STD 461F and Full IP65 level protection
Cloud15-P20 as a military rugged display has the following compliance of MIL-STD-810 standard for shocks, vibration, humidity, high / low temperature and temperature shock; and MIL-STD-461 standard for EMI and EMC, for size, weight, and power.
MIL-STD-810 standard is a Military Standard established by United States Department of Defense considered the utmost principle for military ruggedness request. It provides a series of testing procedures for resistance to water proof, shock, vibration, dust, humidity, and extreme temperatures and Cloud15-P20 is designed to comply to the series of tests concerning on sustainable in such harsh environment.
Since Cloud15-P20 is designed and tested to be used in Military applications requiring, 7StarLake’s mechanical design not only provides enhanced shock and vibration resistance for optimum operability in harsh military conditions, the ability for configure with EMI mesh is also essential. MIL-STD-461 is a requirement for the control of electromagnetic interference characteristics of subsystems and equipment. The power solution of Cloud15-P20 input EMI filter that enables compliance with MIL-STD-461 for applications requiring MIL-STD-461 certification.
7StarLake offers rugged panel computer sealed to the IP65 level for water and dust protection. Cloud15-P20 is designed to ensure complete harsh environment protection, ideal for wet and dusty conditions. Based on the above points, Cloud15-P20 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army, defense, air traffic management and air traffic control applications.

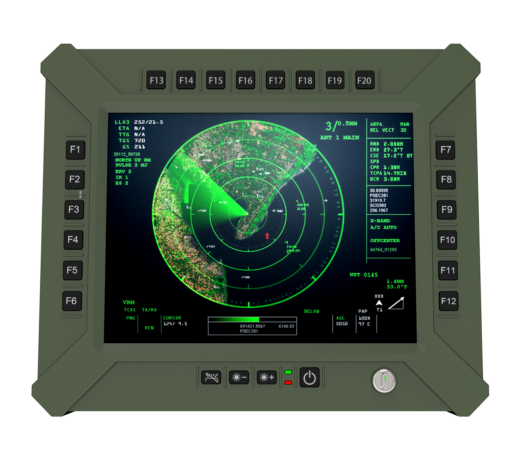

20 Programmable ruggedized function keys design
7StarLake ruggedized mission displays equipped up to 20 ruggedized function keys by rubber-tooling made, each key pad dimension at 16 x 16 mm even the operator access function keys with wearing MOPP levels gloves.
MIL-461/1275 EMI Filter
CLOUD15-P20 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
Intel Xeon W-11865MLE
The Intel® Xeon W-11865MLE is a 64-bit 8 core high-end processor. It’s part of the Skylake Xeon series. In addition to 8 CPU cores with Hyper-Threading clocked at 1.5 – 4.5 GHz, the chip also integrates an Intel(R) UHD Graphics and a dual-channel DDR4-3200 memory controller. The CPU is manufactured using a 10 nm process with SuperFin transistors, and support for additional management and security features such as ECC memory.
NVIDIA AMPERE RTX A2000 :
The Nvidia RTX A2000 is a mainstream GPU based on the Pascal architecture. Contrary to the faster models, the RTX A2000 uses the Ampere architecture. It is shipped with up to 8GB GDDR6-VRAM attached via 128-bit interface memory data rate (192 GB/s).
Key Features

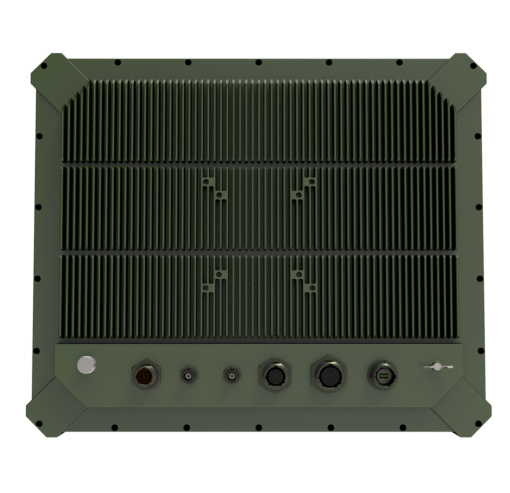

(1)MIL-DTL 38999
MIL-DTL-38999 is a high-performance cylindrical connector family designed to withstand the extreme shock, exposure and vibration that are commonplace in Defense and aerospace applications. Made with removable crimp or fixed hermetic solder contacts, these connectors provide high-vibration characteristics and are suitable for severe wind and moisture problem areas.
(2)G.F.G. Resistive Touch Screen
GFG touch screens are operable with fingers, pens and gloves. The glass surfaces makes the glass-film-glass sensor very durable and scratch resistant (3H Min.).
(3)IP65 Certified
Cloud15-P20 has complete resistance to dust and water; which is ruggedized and reliable for constrained military, ground army and defense.
(4)MIL-461/1275 EMI Filter
Cloud15-P20 is designed with MIL-STD-1275/704, protecting against vehicle/aircrafts voltage surges, spikes and transients, and even electromagnetic interference. This characteristic is well suited for the strictest military requirement and deliver optimal performance in harsh conditions.
(5)MIL-STD 810 Compliance
Cloud15-P20 compliances of MIL-STD-810 for shocks, vibration etc; Cloud15P-20 is rigorously field-tested to meet or exceed MIL-STD810G a for extremely high & low temp. humidity, shock, and vibration.
